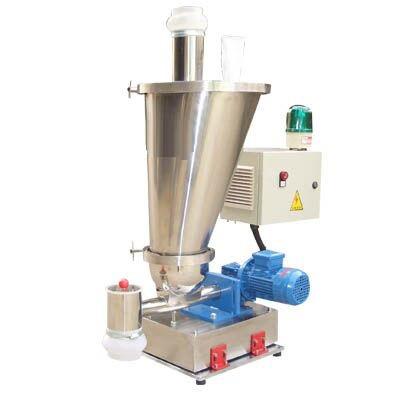

50L Dosing Filling Machine Independently Driven Screw 30kg For Glass Fiber
50L Dosing Filling Machine Independently Driven Screw 30kg For Glass Fiber
Specifications
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-10 working days
Brand Name :
innovation
Model Number :
IN-BSM300
SPEED :
300-500KG/H
CAPACITY OF EACH BATCH :
0.1KG-20KG
READING ACCURACY :
1G
FEEDING ACCURACY :
5-10G
WORKING TYPE :
LOSS IN WEIGHT
APPLICATION :
Glass Fiber AND SIMILER MATERIAL
Description

Applications

Resin pellet,Resin powder,Calcium carbonate,Talc,Fluff,Glass fiber,Carbon fiber

Features
1. Major parts can be disassembled within 1 minute without tools.
2. Little residue remains after discharge,so cleaning is easy.
3. Takes up little floor space,thus is easy to position.
4. Compact and lightweight
5. Independently driven screw and agitator.


Model
Flow rate range
Hopper capacity
Weighing capacity
Feeder weight
Power supply
IN-W-1(-MP) 5~100kg/h 50L 30kg 65kg
Approx 65kg		 AC380V 3phase 0.75KVA
380V AC.3phase 0.75kVA
IN-W-2(-MP) 50~300kg/h 50L 30kg 85kg
Approx 85kg
IN-W-3(-MP) 200~1000kg/h 100L 100kg 180kg
Approx 180kg		 AC380V 3phase 1.5KVA
380V AC 3phase 1.5kVA
IN-W-4(-MP) 500~4000kg/h 200L 200kg 190kg
Approx 190kg
50L Dosing Filling Machine Independently Driven Screw 30kg For Glass Fiber

Product name: LOSS-IN-WEIGHT batching scale machine.

Capacity: 300kg/h (0.5KG TO 500KG is possible, FOR HIGHER CAPACITY, PLS. CONTACT US)

silo size:60L or make to order

accuracy: C3 / 3000 divisions,/ 0.033kg, or higher accuracy is possible.(WE FOCUS ON HIGHER PRECISION BATCHING SYSTEM.)

Weighing type: loss in weight

Material: stainless steel

Application: quartz sand materials or any kind of other similar material.

output: RS485 output, easily install into your control system.

special function: can set 10 formulas for each batching scale.

advantages: watch-dog software, make the system more reliable.

advatage filter system: make the system more accuracy.
