Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Xinda
Model Number :
LCS-1000
Certification :
CE CCC ISO CQC
Supply Ability :
2 Piece/Pieces per Month
Packaging Details :
woodcase or as customer's requirement.
MOQ :
1 Piece/Pieces
Price :
Negotiable
Type :
packing machine
Condition :
New
Voltage :
380V 50Hz
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
5+0.55+0.55KW
Warranty :
1 year
Weight :
2T
Port :
Shanghai
Description

Auto Packing Machine , Rubber Powder Filling Machine For Tire Recycling

Introduction

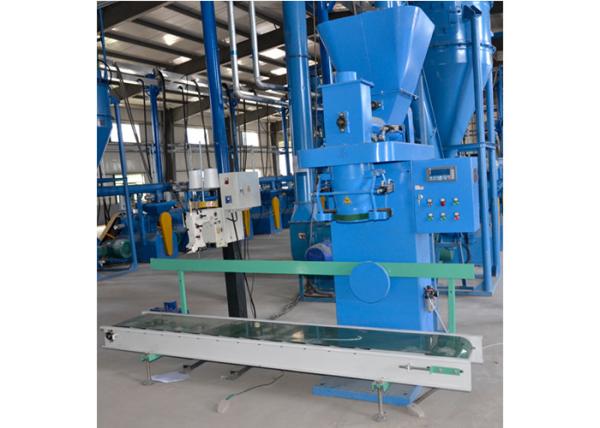

LCS Auto Packing Machine is used to automatically weigh and fill rubber powder and then seals the package. It is designed especially for the rubber powder in consideration of its flowability, bulk density. The machine mainly consists of frequency conversion motor, screw feeder, feeding hopper, weighing device, conveyor, sealing device, sensor and control device, etc.

Structure and principle


1 Adopting frequency speed changing, electrically weighing and counting technology. Feeding volume PLC controlled, high automation, quick packing speed, accurate weighing and counting, no air pollution features;
2 Package clamping and holding system, vibrating discharging, pneumatic working parts, PLC Controlling;
3 Belt conveying, automatic sensor sealing to save labor force and speed up packing process;
4 Ultra-red feeding level sensor inside the feeding hopper, stirring device to avoid rubber powder jamming ensure packing accuracy and speed.

Technical Data

Model 50 1000
Packing weight(kg) 10-50 200-1000
Packing accuracy(%) 0.02 0.02
Packing speed (Bag/Hour) 3-10 8-20
Motor(Kw) 3+0.55+0.55 5+0.55+0.55
Air Pressure(Mpa) 0.6 0.5-0.7
Weight(T) 1.1 2
