CXFJ-28 rubber fine miller grinding machine rubber powder grinding machine
CXFJ-28 rubber fine miller grinding machine rubber powder grinding machine
CXFJ-28 rubber fine miller grinding machine rubber powder grinding machine
CXFJ-28 rubber fine miller grinding machine rubber powder grinding machine
CXFJ-28 rubber fine miller grinding machine rubber powder grinding machine
CXFJ-28 rubber fine miller grinding machine rubber powder grinding machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XINDA
Model Number :
CXFJ-28
Certification :
CE ISO
Supply Ability :
10 Piece/Pieces per Month
Packaging Details :
wrapping film, wood case or as customer's requirement
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 50Hz
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
30+0.75+0.06KW
Weight :
1.2t
Port :
Shanghai
Description

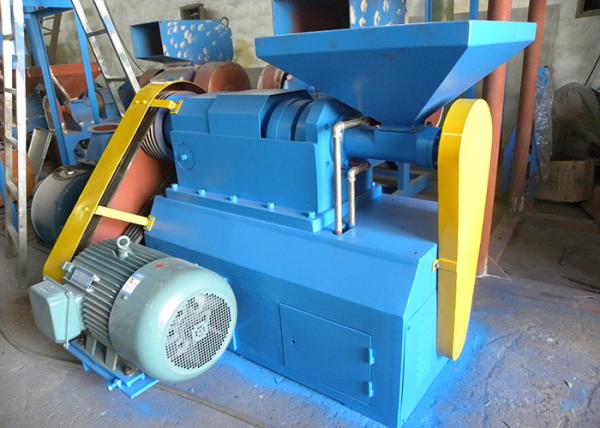

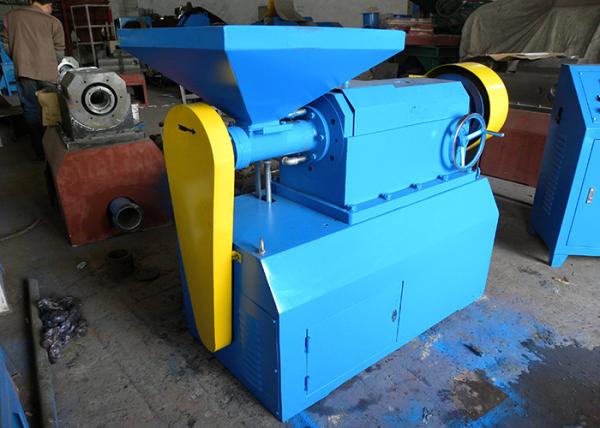

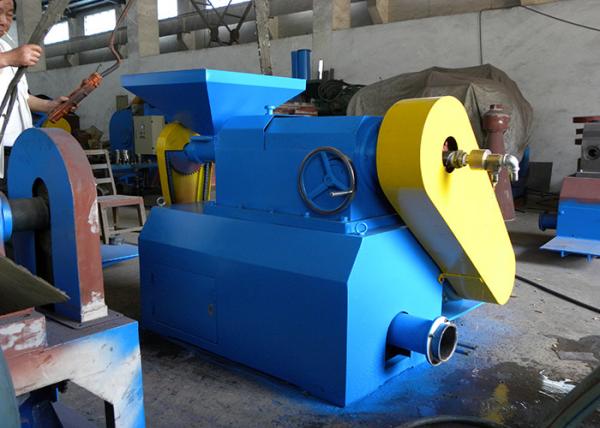

CXFJ Rubber Fine Miller

Introduction

The CXFJ Rubber Powder Fine Miller is used to mill 2-6mm pure rubber powder from 40-200mesh in ambient process. It mainly consists of milling motor, frequency conversion feeder, motor adjusting device, feeding hopper, fixed and rotary milling discs, machine frame, main shaft, collecting pipe, circulate water cooling system.

Structure and Principle

The machine use tungsten carbide as the milling surface of the milling disc, the milling disc base is made of special treated materials. Crashing-proof, wearable durable and good ductility;

The whole machine adopts horizontal structure. Most parts are CNC processed to ensure the installation accuracy. Compact structure, low power and vibration, easy operation and maintenance;

The feeding system adopts ultra-red monitor controlled by PLC to maximum the output. The clearance between fixed and rotary discs are also controlled by PLC motors, which has greatly improved the quality and fineness of the rubber powder;

Internal circulating water cooling system can ensure ideal temperature for the milling discs during production, the rubber powder will not get burned or sticky.

Technical Data

Model

28

Capacity (KG/h)

60-160

Main shaft speed (RPM)

860

Motor powder (KW)

30+0.75+0.06

Feeding size (mm)

2-6

Output size (mesh)

40-200

Weight (T)

1.2
