Xinda CSJ-500C Rubber Crusher fiber nylon separator for tire recycling tire grinder
Xinda CSJ-500C Rubber Crusher fiber nylon separator for tire recycling tire grinder
Xinda CSJ-500C Rubber Crusher fiber nylon separator for tire recycling tire grinder
Xinda CSJ-500C Rubber Crusher fiber nylon separator for tire recycling tire grinder
Xinda CSJ-500C Rubber Crusher fiber nylon separator for tire recycling tire grinder
Xinda CSJ-500C Rubber Crusher fiber nylon separator for tire recycling tire grinder
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XINDA
Model Number :
CSJ-500C
Certification :
ISO GMP
Supply Ability :
10 Piece/Pieces per Month
Packaging Details :
wrapping film, wood case or as customer's requirement
MOQ :
1 Set/Sets
Price :
Negotiable
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 50Hz
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Tire Machine
Port :
Shanghai
Description

CSJ-C Rubber Coarse Crusher

Introduction

The machine is developed for crushing those raw materials which contain much fiber or other impurities. It has two cooling systems, the water-cooled and the air cooled systems. The machine has many advantages, as high capacity , low working temperature, no screen jamming, continuous operation ,etc.

Structure and principle

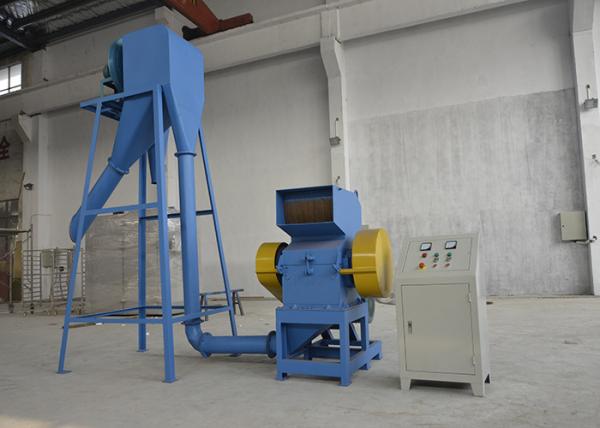

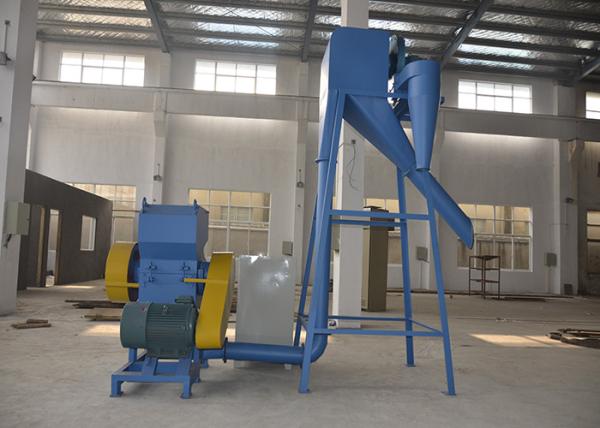

The machine is mainly composed of crushing machine, draught fan, conveying device, cyclone, fiber separator and control cabinet. It adopts hard alloy or wear-proof steel blades, has a long working life. The crushed materials are conveyed and discharged through cyclone and separator under strong air blowing force, the final granules and the fiber (or other impurities ) can be separated and comes out from two outlets, so the final granules will be more pure and have high quality.

Model 400C 500C
Capacity(Kg/H) 100-1000 150-1500
Main shaft speed(RPM) 600 600
Feeding size(mm) <200mm <250mm
Output size(mesh) 2-20 2-20
Motor power(Kw) 15 22
Dust absorption power(Kw) 3 3
Weight(Kg) 1300 1500
Dimention(m) 4.6*1.8*2.8 4.8*1.8*2.8
