CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
CQJ-280 Rubber Chip Grinder tire grinder crusher tire recycling plant
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
CQJ-320
Certification :
CE,CCC,ISO,CQC
Supply Ability :
1 Set/Sets per Month
Packaging Details :
wooden crate,and need $30/m3
MOQ :
1 Set/Sets
Price :
Negotiable
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 50Hz
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Tire Machine
Power(W) :
48.75kw
Weight :
4.5t
Port :
Shanghai
Description

Introduction

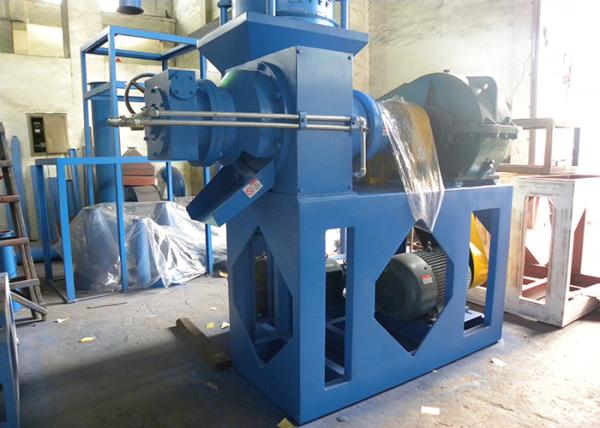

The CQJ Rubber Chip Grinder is used to coarse/fine grind various kinds of shredded rubber chips in ambient process and it will also detach the steel wire and fiber with the rubber during grinding. The machine is composed of motor, speed reducer, grinding cone, grinding sleeve, grinding spiral shaft, feeder, cooling system and machine frame, etc.

Structure and Principle

The machine adopts rotary grinding and cutting principle with 360 degree large working surface, compact structure, high efficient and durable;

The machine is of folio compact structure for easy installation and maintenance. The grinding spiral shaft inside the grinding cone is controlled by PLC, it can adjust the grinding size automatically to produce required size of rubber granules and meantime, completely detach rubber, steel wire and nylon;

The main working parts of the machine are made of imported hard alloy materials after special hardness and wear treatments, the wearing parts are designed as replaceable, so the wearing parts repairing and changing jobs are made very easy, quick and not costly any more. Durable, high efficient, easy replacement and advanced technology;

The feeding hopper adopts direct discharging structure with stirring device at the bottom to avoid materials jamming.

The machine body and spiral shaft are cooled with circulating water to ensure suitable working temperature.

Technical Data

Model: 320
Capacity(Kg/H): 200~600
Working diameter(mm): 320
Feeding size(mm): <=50*80
Output size(mm): <=2~8
Motor Power(Kw): 45+3+0.75
Main shaft speed(RPM): 32
Weight(T): 4.5
