Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Ruber Powder Superfine Miller for Waste Tire/Tyre Recycling Production Line ISO & CE
Specifications
Place of Origin :
Jiangsu, China
Model Number :
CXFJ-26
Brand Name :
XD
Certification :
CE CCC ISO CQC
Supply Ability :
20 Piece/Pieces per Month
Packaging Details :
to be wrapped by a plastic film, then packed by a wooden crate according to dimension of machine under export standard
MOQ :
1 Piece/Pieces
Price :
Negotiable
Condition :
New
Voltage :
as per customer requirement
Dimension(L*W*H) :
2.5*2.5*3.8
Weight :
1.5t
Spec :
Carbon Steel
Experience :
Over 10 years professional experience
Control :
Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
25.75
Warranty :
12 months since working in buyer's factory
Port :
Shanghai
Description

CXFJ Rubber Powder Superfine Miller

Waste tire recycling rubber powder production equipmet

1. This machine is widely used in milling the natural rubber, synthetic rubber and plastic powder production etc.

2. Developed by adopting domestic and overseas technology.

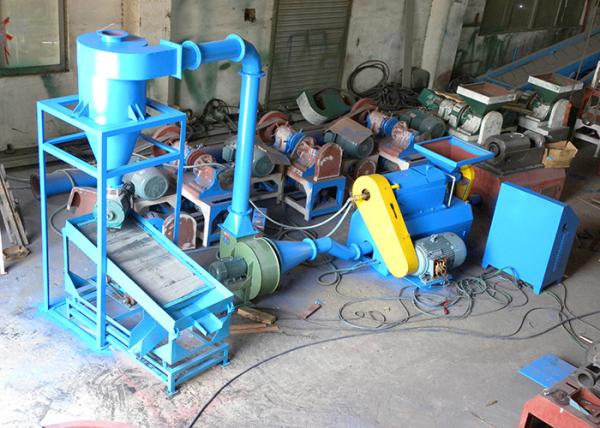

3. Mainly composed of one or multiple millers, collector, draught fan, cyclone and control cabinet system.

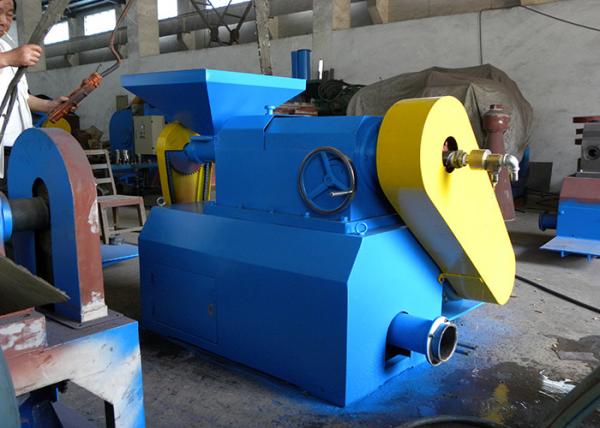

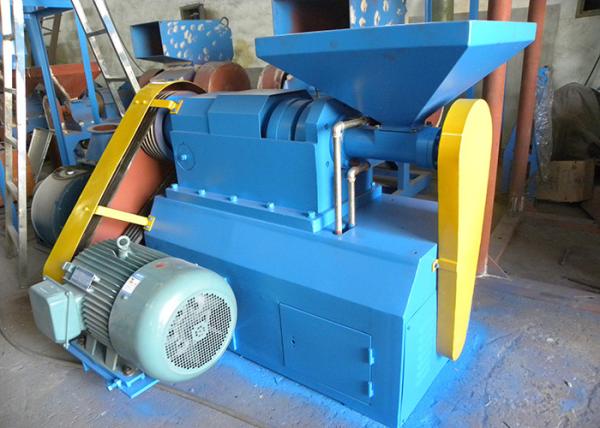

4. Miller consists of frame, motor, stepless feeding motor, feeding device, fixed and rotary discs.

5. Basic principle is to mill and grind rubber into rubber powders by the relative movement of fixed and rotary discs.

6. Wind and water cooling system can ensure the output quality

7. With such features as low noise, easy operation, high output and maintenance, no pollution and even milling size, etc

Technical Data:

Model 26-1 26-2 26-3
Capacity(kg/h) 40~200 80~400 120~600
Feeding size(mesh) 5~20 5~20 5~20
Output size(mesh) 30~100 30~100 30~100
Motor power(kw) 25.75 49.5 73.75
Milling temperature(ºC) ≤80 ≤80 ≤80
Weight(ton) 1.5 2.5 3.5
Dimension(L*W*H)(cu m) 2.5*2.5*3.8 3.5*2.5*3.8 6*2.5*3.8
