Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Certification :
CE ISO
Supply Ability :
20 Set/Sets per Quarter
Packaging Details :
Plywood Crate
MOQ :
12345 Set/Sets
Price :
Negotiable
Mixer Type :
Planetary Mixer
Barrel Volume (L) :
300
Max. Loading Volume (L) :
180
Range of Spindle Speed(r.p.m) :
20 - 50
Max. Loading Capacity :
180 L
Weight (KG) :
1000
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Powder, Food,Medicine,Chemicals
Condition :
New
Product Type :
Food&Medicine&Chemical
Voltage :
380 V
Dimension(L*W*H) :
1900*2100*2300 (mm)
Power (kW) :
4
Warranty :
1 year
After-sales Service Provided :
Online support, Video technical support
Key Selling Points :
High Productivity
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Product name :
Three Dimensional Swing Mixer for food powder
Capacity :
50-1500Liter
Port :
Shanghai
Description
Three Dimensional Industrial Powder Mixer Swing Mixer For Food Powder SBH
Product Description

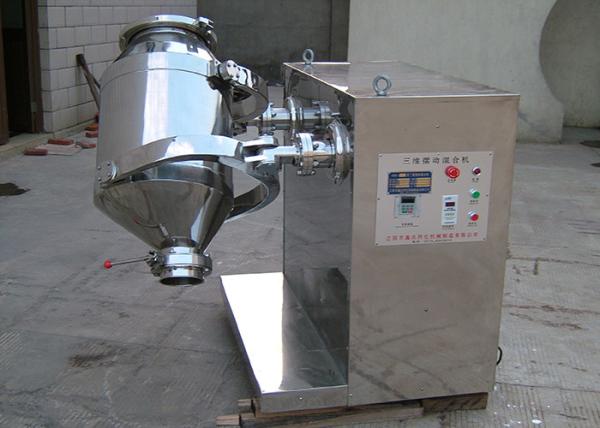

SBH Three Dimensional Swing Mixer

Main Application
The machine is widely used for the mixing of powder materials by pharmacy, chemicals and
foodstuff industries,
as well as for the quick and even mixing of various materials in different granule size and
gravity.
Characteristics
With its unique 3dimensional swing, parallel moving and rolling methods, the mixer can
generate a strong pulse
movement to push forward and to mix target materials continuously. The excellent mixing
effects are the result of its
changeable vortex movement that possesses the energy grads inside. It also has the merits
of smooth running, low noise,
high loading quantity and short mixing time as well.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder,
etc. The cylinder container will carry on parallel moving and rolling under the driving of
main axis, thus to push the material moving in the direction of circly, radical and
axially, achieving uniform mixing of different varieties of material.

Outside Sketch

Technical Data

Model

400

Mixing barrel volume(L)

400

Max loading volume(L)

320

Max loading weight(kg)

200

Max axis speed(r/min)

0-15

Motor power(kw)

4

Weight(kg)

1200

Overall size(L*W*H)(mm)

1900*2100*2300

Dimension(Cubic meter)

9.177

FAQ

1 with one year's free wanttary

2 Professional engineers team
