Specifications
Place of Origin :
Jiangsu, China
Brand Name :
xinda
Model Number :
YTG-200
Certification :
CE CCC CQC ISO
Supply Ability :
15 Piece/Pieces per Month
Packaging Details :
woodenc ase
MOQ :
1 Piece/Pieces
Price :
Negotiable
Condition :
New
Type :
Vertical Conveyor
Material :
Stainless Steel
Material Feature :
Heat Resistant
Structure :
Conveyor System
Load Capacity :
200Kg
Voltage :
380V 50Hz
Power(W) :
2.2Kw
Dimension(L*W*H) :
1800*800*1950(mm)
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
shanghai
Description

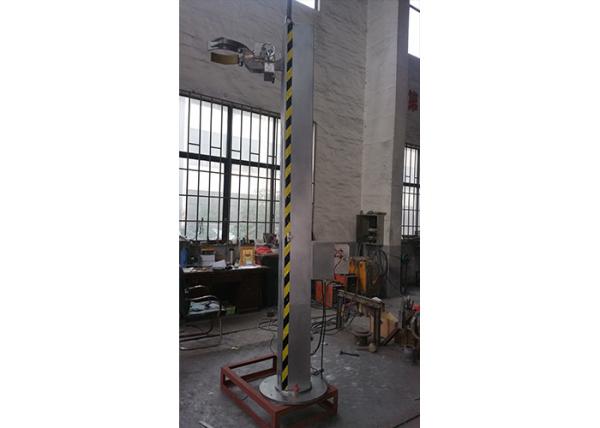

High Efficiency Conveyor Feeder Systems Movable Lifter Conveyor YTG-100

Main application

It is also widely used in industries as chemical, food, light industry and etc. It can be used along with such main processing quipments as fluid-bed granulator or dryer and shift materials to the next processing equipment.

Working Method

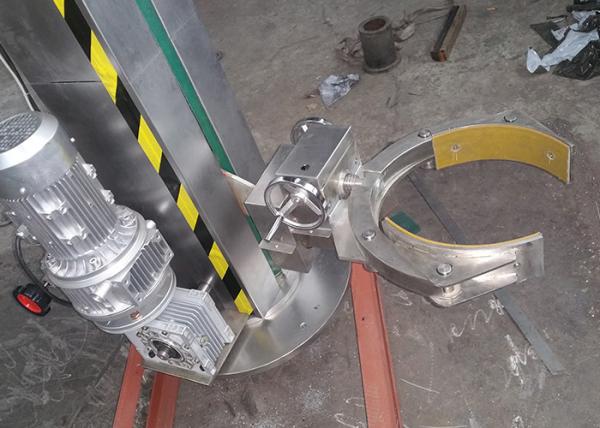

It consists of fixed chassis,post,hydraulic system,turn over structure,etc.To start to work,cover and bowl with the cone adapter and sal them tightly to form an integrated hopper.Switch on the lifing handle,the hopper is lifted;then switch on the turnover handle,the hopper turns over 180°C.

Unfix the skid appliance on the chassis by foot,gyrate to the post horizontally,and fix the outlet of the cone adapter with the inlet of the next processing equioment.

Open the butterfly valve on the cone adapter,materials flow out fluently into the next equipment.The lifing height from outlet to the ground is 1.8m and total height is 1.95m.

model

50

100

150

200

max load

50

100

150

200

max lifting height

1800

1800

1800

1800

max height point

2592

2741

2880

3020

post height

1950

1950

1950

1950

load distance

425

435

435

435

motor power

0.75

1.5

1.5

2.2

weight

310

420

510

680

overall size (L*W*H)

1400*650*1950

1655*750*1950

1735*750*1950

1800*800*1950
