Specifications
Brand Name :
Xinda
Certification :
CE CCC ISO CQC
Place of Origin :
Jiangsu, China
MOQ :
1 Piece/Pieces
Price :
Negotiable
Supply Ability :
10 Piece/Pieces per Month
Packaging Details :
to be wrapped by plastic film and packed in a wooden case and make delivery in container
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 50Hz
capacity(pcs/h) :
20~40
working pressure(mpa) :
12
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
7.5KW
Port :
Shanghai
Description

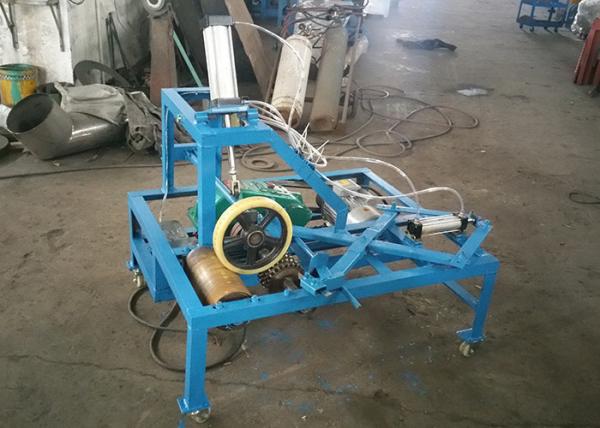

QGJ Big Rubber Tire Cutting Machine , Tyre Cutting Machine 20~40 Pcs/H

Introduction

(1) Equipment use:

This machine is a special equipment for quickly cutting and separating the sidewalls and crowns of used passenger car tires. It is the first process of refining used tires and facilitating stacking and transportation.
(2) Structure and principle:
The machine consists of frame, transmission mechanism, clamping mechanism, cutting mechanism, air pressure adjustment mechanism, cutter mechanism and so on. The basic principle is to select the inner ring of the tire as the support point and place the inner ring on the support frame. The compression mechanism of the support frame firmly supports the tire to the support frame; the two gear shafts are driven by the deceleration transmission mechanism; the cutting tool is installed on the knife seat and the feed is driven by the pneumatic clamping mechanism, which can be adjusted according to the size of the tire Adjust the air pressure at will to control the amount of feed. While the tire is running, the clamping mechanism drives the cutter to cut into the tire, and the tire can be cut smoothly.
(3) Features: The casters installed at the bottom of the rack are easy to move, the power supply uses single-phase voltage, the cutting speed is 10 times faster than the ordinary cutting machine, and the cutter is made of high-speed steel, which is durable.

Model: 800
Processing capacity (bar / hour): 200-300
Processing specifications (inches): 14-20
Motor power (kw): 1.5
Spindle speed (rev / min): 60
Air pressure (kg): 6-8
Weight (kg): 180
Dimensions (L × W × H) (mm): 1450 × 1100 × 1250

Structure and principle

  • The blades are made of high quality imported materials, wear- proof, heavy- duty and long life;
  • The rolling shelf and rotary platform make the operation easy and quick;
  • Automatic reposition function after each cut;
  • With blocking Pole to avoid tires sticking;
  • The hydraulic system adopts international advanced constant power variable plunger pump technology, low noise and high pressure and improved the stability and life of machine.
