Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XINDA
Model Number :
XKP-560*800
Certification :
CE CCC CQC ISO
Supply Ability :
1 Piece/Pieces per Month
Packaging Details :
Wooden crate
MOQ :
1 Piece/Pieces
Price :
Negotiable
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 50Hz
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
90KW
Weight :
19.5T
Port :
Shanghai
Description

XKP Tyre Recycling Line Double Roller Rubber Tire Grinder 32 RPM Main Shaft Speed

Introduction

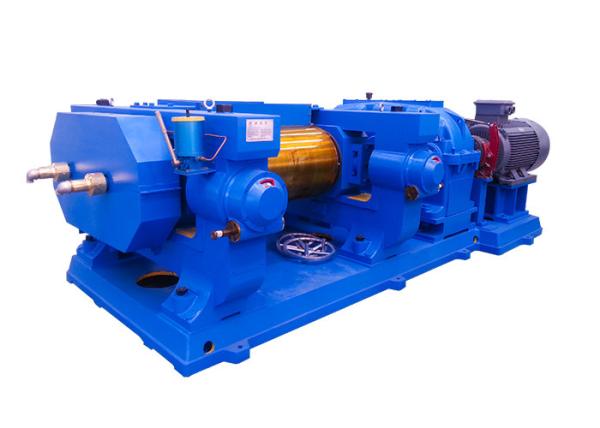

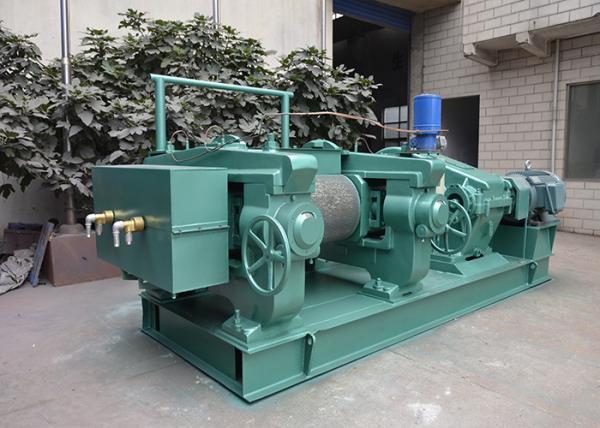

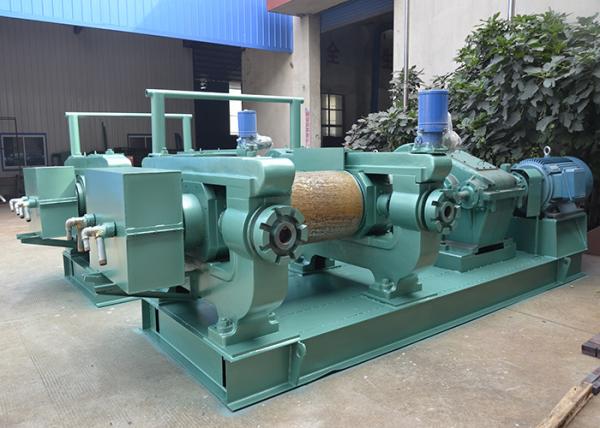

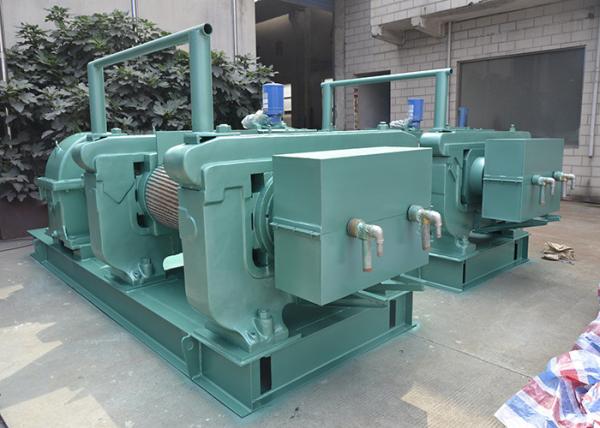

The Machine consists of main body,transmission, safety guard, roller temperature adjusting unit, Lubrating system and auto stop protection system.

Two rollers are the main working parts of the machine,which are driven by motor via speed reducer and roate in a certain speed difference ratio.

Structure and Principle

The roller surfaces are made of casted hard alloy materails,hard,wear proof and durable.It is supported by bearings at its two ends,lubricate with oil filler.

The clearance between two rollers can be adjusted with rated range.With safety guard system,when overloaded,the safrty plate will break to protect machines parts from demage.

There are rubber blocking plates at the end of the working roller and cooling system for roller surface.

Technical Data

Model: 560*800
Capacity(Kg/H): 200~1000
Working diameter(mm): Front 560 Rear 510
Feeding size(mm): 30~60
Output size(mm): 5~30
Motor Power(Kw): 90
Main shaft speed(RPM): 32
Weight(T): 19.5
