Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Double Hooks Tire Recycling Line Waste Tire Wire Bead Removal Machine SG-1200
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
SG-1200
Certification :
ISO9001 CE
Supply Ability :
20 Set/Sets per Quarter
Packaging Details :
to be wrapped by a plastic film, packed by seaworthy packing according to export standard for SG-1200 Double Hooks Waste Tire Wire Bead removal Machine
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V
Dimension(L*W*H) :
2.2*2*1.8m
Name :
SG-1200 Double Hooks Waste Tire Wire Bead removal Machine
Spec :
carbon steel
Capacity :
60-120pcs per hour
Color :
Blue or customized
Handling tyre diameter :
No more than 1200mm
Pulling force :
15+15T
Application :
Steel tyre for wire steel pulling
Experience :
Over than 10 years professional experience
Warranty :
12 months
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
7.5+7.5kw
Weight :
6.5T
Port :
Shanghai for SG-1200 Double Hooks Waste Tire Wire Bead removal Machine
Description

SG-1200 Double Hooks Waste Tire Wire Bead removal Machine

Product Description

Introduction

Tire wire bead removal machine is used to pull out bead wires inside two tire sidewalls completely and simultaneously before next cutting and shredding process.It mainly consists of motor, speed reducer, transmission gears, round hooks, cross-hole plate, support boards, pedestal, bearing pedestal, rolling shelf and control cabinet.

Structure and Principle

  • The machine uses integral base pedestal, easy installation and operation, it is the most efficient debeader in the current market;
  • Adopts twin motor and twin hook design to pull out bead wires at 3 times the speed of the single hook debeader;
  • Mechanical transmission and round hook design, high efficient and small occupation area;
  • Circuit protection system, safety protection frame to make the operation easy and safe;
  • Round hook, cross hole plate and gears are made of materials after special treatment, wearable, heavy-duty, easy maintenance and long life.

Technical Data

Model 1200
Capacity(Pcs/H) 60~120
Handling tire(mm) ≤Φ1200
Motor power(Kw) 15
Pulling force(T) 30
Weight(T) 6.5

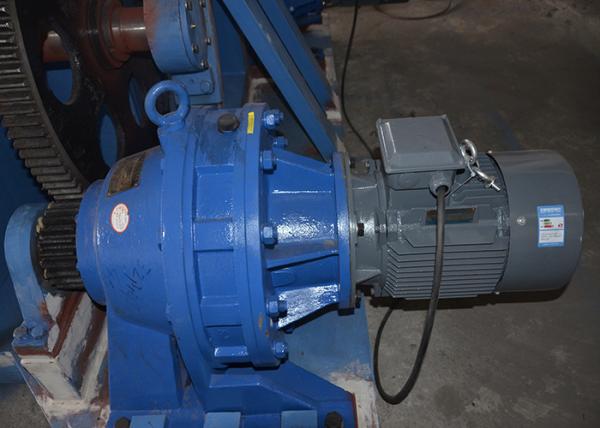

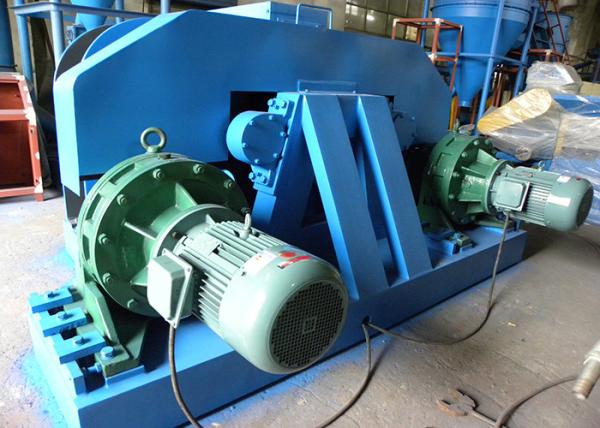

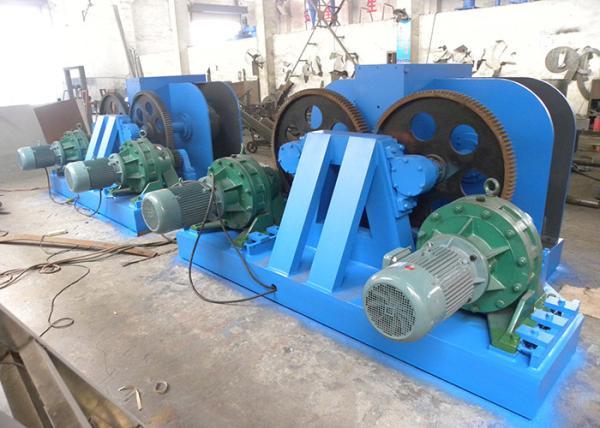

Photos of Tire wire bead removal machine:
