Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
XFJ-1100
Certification :
CE CCC CQC ISO
Supply Ability :
5 Piece/Pieces per Month
Packaging Details :
to be packed in wooden cases and deliver by container
MOQ :
1 Piece/Pieces
Price :
Negotiable
Type :
Tyre Recycling Fiber Separator
Voltage :
380V 50Hz
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
5.5Kw
Weight :
1.4T
Warranty :
1 year
Port :
Shanghai
Description

Tyre Recycling Processing Fiber Separator

Introduction

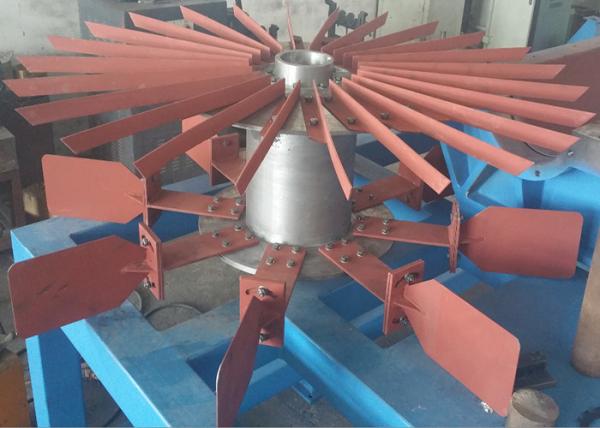

XFJ Fiber Separator is an ideal air separation equipment, it is used for separating fluff fiber mixed in rubber granule or rubber powders to improve the purity of the rubber powder and quality of reclaimed rubber. It mainly consists of motor, feeding pipe,big impeller, wind plate, disperse plate, adjusting plate, upper cylinder, lower cone and machine frame, etc.

Structure and principle

  • According to different raw material and content percentage of fiber, you can change the upstream air volume by adjusting the wind blocking plate and also angle of the big impeller without shutting down the machine to get pure rubber granule and powder;
  • The machine work in low speed, adopting circulating air, no friction, durable, energy saving and high efficiency;
  • Fluff fiber separation up to 99%;
  • The whole machine is sealed with negative air pressure inside, no air pullution, low noise;

Technical Data

Model 1100
Capacity(Kg/H) 200~600
Impeller diameter(mm) 1100
Impeller quantity(Pcs) 8
Motor Power(Kw) 5.5
Main shaft speed(RPM) 400
Weight(T) 1.4
