High Efficiency Tyre Recycling Line PF Breaker Auxiliary For Rubber Powder Equipment

Introduction:
The equipment composition of the crushing unit of waste tire rubber powder equipment and the rubber powder screening magnetic separation conveyor unit;

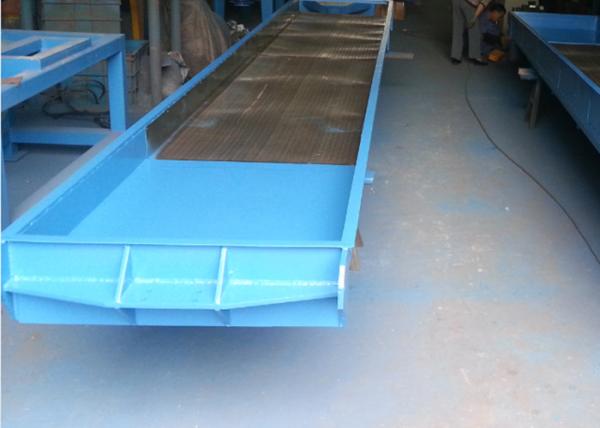

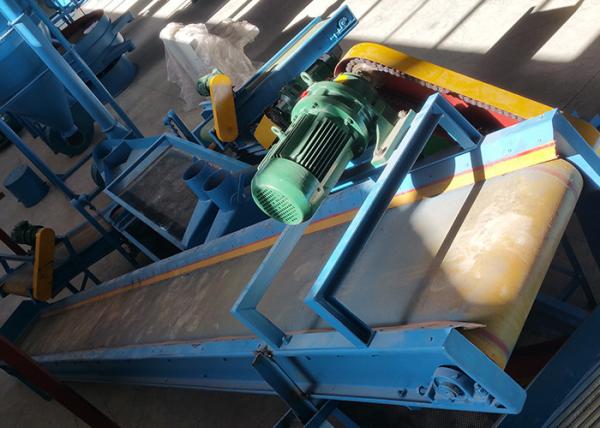

The unit is composed of a main machine (rubber breaker) and an auxiliary machine: the auxiliary machine equipment is composed of a main vibrating screen, a block conveyor, a rubber powder sorting vibrating screen, a powder conveyor; a steel wire and rubber powder magnetic separator , Cooperate with the host to complete the entire process.

Features and steps:
Through the waste tire decomposition equipment, the tire is first processed into small pieces of 3.5 cm square; then the rubber block is crushed and ground by the crushing unit to obtain the rubber powder crushed by the steel wire. , Rubber granules; Then, the magnetic powder conveyor is screened by the rubber powder to completely separate the steel wire and the tire rubber.

The fine material screened through the two sieve beds through the belt conveying device is then separated through magnetic rollers to separate the steel wire to produce pure rubber powder with a fineness of 10 mesh to 40 mesh (fineness substitution). The rubber powder that does not meet the required mesh fineness is returned to the pulverizer through the block conveyor to be ground again.

This circulating grinding technology is advanced, and the effect of magnetic wire separation is not required to be more than 99.9%. The total installed machine is 80Kw, with an average of 1 per treatment The power consumption per ton of tires is about 200 degrees, and the output per hour is 200-400 kg (the rubber is obtained).

The fineness of the powder is different, and the output is also different). It is the best equipment for the production of rubber powder using steel wire tires.
