Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XINDA
Model Number :
SG-1200
Certification :
CE CCC CQC ISO
Supply Ability :
10 Piece/Pieces per Month
Packaging Details :
to be wrapped by plastic film and packed in a wooden case and make delivery in container
MOQ :
1 Piece/Pieces
Price :
Negotiable
Type :
Tire Machine
Tire Machine Type :
Tire Building Machine
Voltage :
380V
capacity(pcs/h) :
60~120
handling tire(mm) :
<=1200
pulling force(t) :
15+15
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
7.5+7.5kw
Weight :
6.5t
Port :
Shanghai
Description

Double Hook Debeader Tire Bead Wire Remover Machine , Waste Tyre Recycling Machine

Introduction

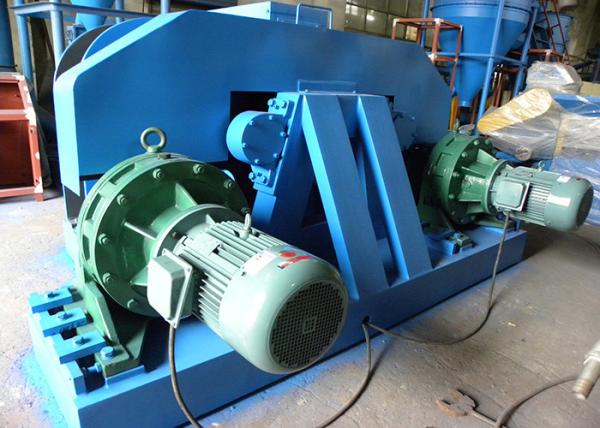

SG Double Hook Debeader is used to pull out bead wires inside two tire sidewalls completely and simultaneously before next cutting and shredding process.It mainly consists of motor, speed reducer, transmission gears, round hooks, cross-hole plate, support boards, pedestal, bearing pedestal, rolling shelf and control cabinet.

Structure and Principle

  • The machine uses integral base pedestal, easy installation and operation, it is the most efficient debeader in the current market;
  • Adopts twin motor and twin hook design to pull out bead wires at 3 times the speed of the single hook debeader;
  • Mechanical transmission and round hook design, high efficient and small occupation area;
  • Circuit protection system, safety protection frame to make the operation easy and safe;
  • Round hook, cross hole plate and gears are made of materials after special treatment, wearable, heavy-duty, easy maintenance and long life.

Technical Data

Model 1200
Capacity(Pcs/H) 60~120
Handling tire(mm) ≤Φ1200
Motor power(Kw) 15
Pulling force(T) 30
Weight(T) 6.5
