Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
LS-1200
Certification :
ISO9001 CE
Supply Ability :
20 Piece/Pieces per Month Tire Drawing Machine
Packaging Details :
Wooden case packed for Tire Drawing Machine
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380v or customized
Dimension(L*W*H) :
3.0*0.76*1.1m
Name :
Tire Steel Wire Debeader/ Tire Drawing Machine
Specification :
Carbon steel
Drive :
Hydraulic
Capacity :
20-40pcs/h
Color :
Blue, white or customized
Handling tyre diameter :
no more than 1200mm
Working pressure :
15Mpa
Cylinder reciprocation distance :
1300mm
Service life :
15 years
Experience :
Over than 10 years professional experience
Warranty :
12 months
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
11kw
Weight :
1.4T
Port :
Shanghai for Tire Hydraulic Debeader
Description

Customized Color Tyre Recycling Line Tire Steel Wire Debeader Tire Drawing Machine

Tire Steel Wire Debeader/ Tire Drawing Machine

Specification:

1. Hydraulic Driving
2. Easy Operation
3. adopt international advanced plunger pump technology,

low noise,and high pressure and improved the stability and life

Product Description

Introduction

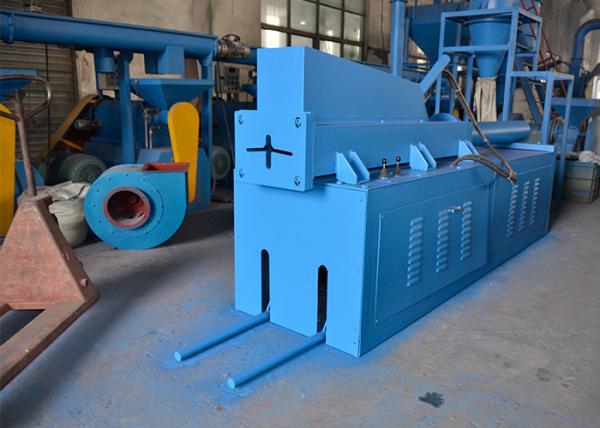

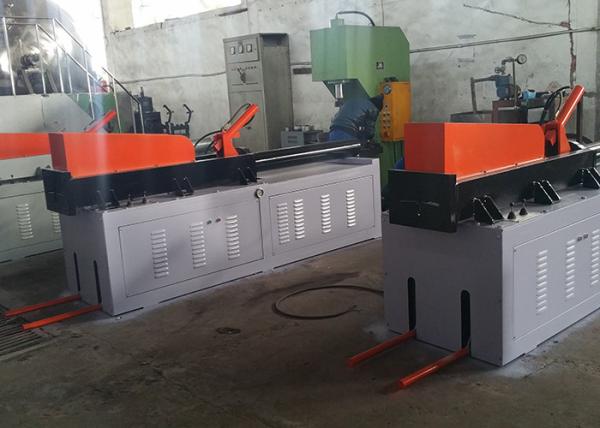

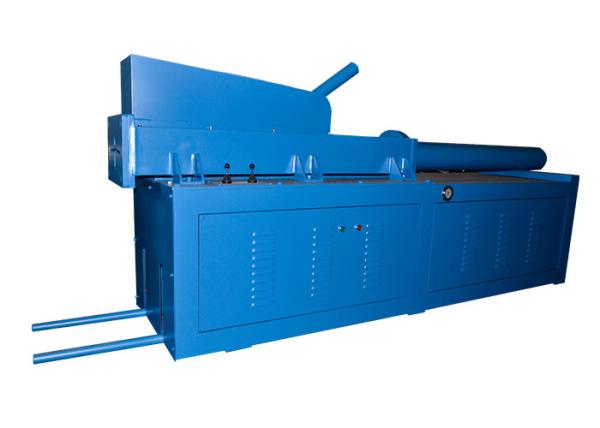

Tire Debeader is used to pull out the bead wires inside tires' sidewalls completely before the cutting and shredding process.

It mainly consists of motor, hook, cross-hole plate, body frame, cylinder, hydraulic station, operation lever, directing wheel.

Technical Data

Model

1200

Capacity(pcs/H)

20~40

Handling tire(mm)

≤Φ1200

Motor power(Kw)

11

Working pressure(Mpa)

15

Cylinder reciprocation distance(mm)

1300

Weight(T)

1.4

Dimension(mm)

3150*760*1120

Types of debeader:

Single hook debeader

Double Hooks Debeader

Tire Recycling Rubber Granule & Powder Plant:

Final product:
