Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
LS-1200
Certification :
ISO9001 CE
Supply Ability :
20 Piece/Pieces per Month Waste Tire Wire Drawer
Packaging Details :
Wooden case packed for Waste Tire Wire Drawer
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380v or customized
Dimension(L*W*H) :
3.0*0.76*1.1m
Name :
Hydraulic Scrap Tire Bead Remover/ Waste Tire Wire Drawer
Specification :
Carbon steel
Drive :
Hydraulic
Experience :
Over than 10 years professional experience
Warranty :
12 months
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
11kw
Weight :
1.4T
Port :
Shanghai for Tire Hydraulic Debeader
Description

Waste Tire Wire Drawer Tyre Recycling Line Hydraulic Scrap Tire Bead Remover

Hydraulic Scrap Tire Bead Remover/ Waste Tire Wire Drawer

Product Description

Introduction

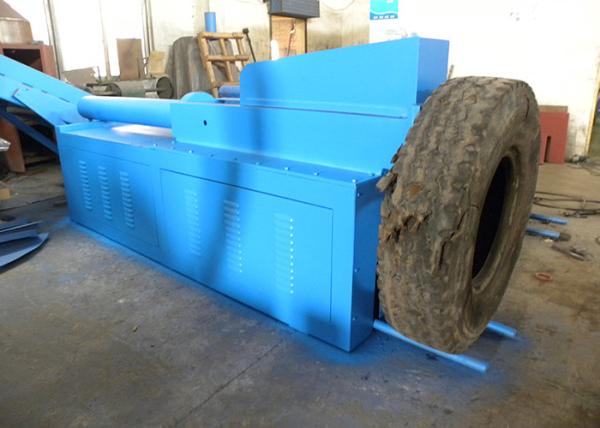

LS Single Hook Debeader is used to pull out the bead wires inside tires?sidewalls completely before the cutting and shredding processes. It mainly consists of motor, hook, cross-hole plate, body frame, cylinder, hydraulic station, operation lever, directing wheel.
Structure and Principle

◆ Hook, cross-hole plate are made of materials after special treatment, wear-proof, heavy-duty and long life;
◆ With lifting device, the tire can be loaded for processing at ease to increase handling speed and save labor;
◆ The lifting and pulling processes are controlled with hand lever manually to ensure process accuracy;
◆ The hydraulic system adopts international advanced plunger pump technology, low noise, and high pressure and improved the stability and life of the machine.

Technical Data

Model

1200

Capacity(pcs/H)

20~40

Handling tire(mm)

≤Φ1200

Motor power(Kw)

11

Working pressure(Mpa)

15

Cylinder reciprocation distance(mm)

1300

Weight(T)

1.4

Dimension(mm)

3150*760*1120

Final product:
