Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
LS-36
Certification :
CE CCC CQC ISO
Supply Ability :
10 Set/Sets per Month
Packaging Details :
WOODEN
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
conveyor
Condition :
New
Voltage :
380V 50Hz
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
1.1Kw
Weight :
0.15T
Warranty :
1 year
Port :
SHANGHAI
Description

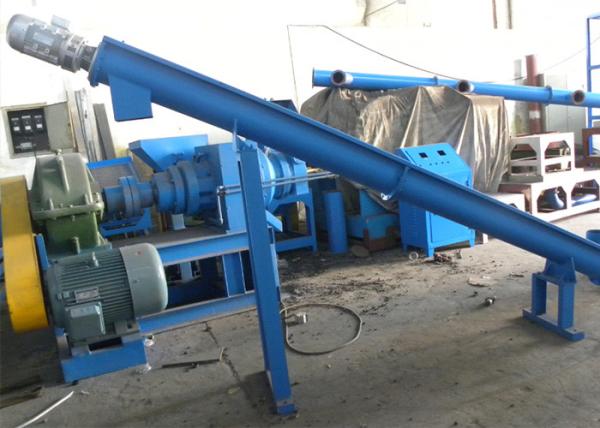

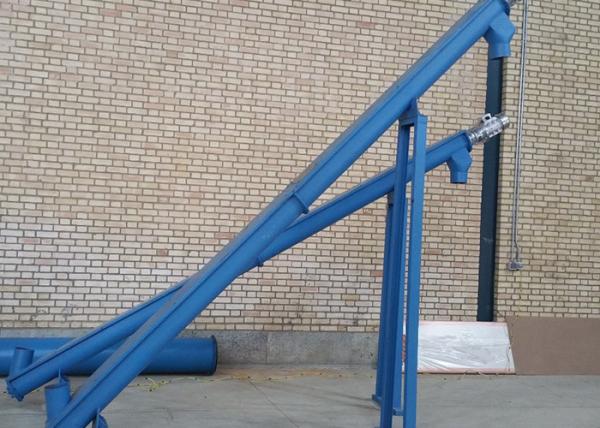

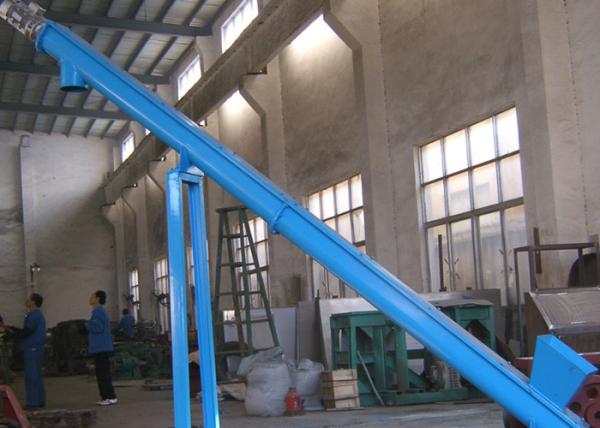

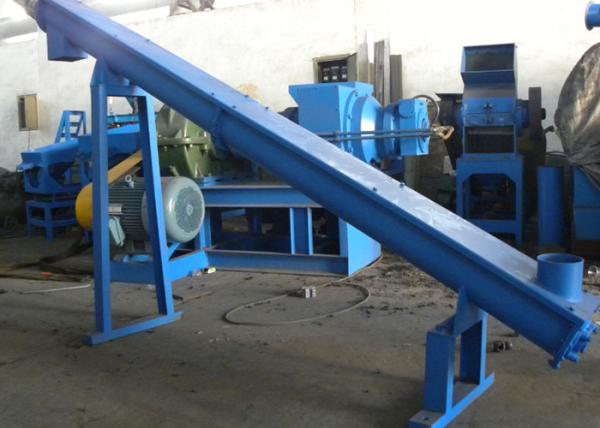

Durable Powder Screw Conveyor , Rotary Rubber Powder Conveyor For Tire Recycling

Introduction

LS Screw Conveyor is used to connect different machines in the line, or to split feed for multiple machines, it is specially designed for rubber granule and powder conveying. The machine mainly consist motor, speed reducer, conveying tunnel, screw shaft, hopper, machine frame, view window, splitting motor, splitting valve and discharging outlet, etc.

Structure and Principle

1 Enclosed structure with view window to monitor at any time. Compact structure, big conveying volume, easy installation and movement, no air pollution;

2 Use cycloidal pin gear reducer, low noise, high efficient, compact structure

3 Can convey in both horizontal or sideling directions;

4 All the splitting motors are switched on and off by the PLC system, it can convey materials evenly and accurately into the machines and ensure the whole line stability, safety and high efficiency

Model: LS-36;44;70
Capacity: 200~800kgs/h
Conveying distance: 3~8m
Screw rotary speed (RPM): 60
Motor power: 1.1-1.5 kw
Weight: 0.15-0.6T
