Public Sports Facilities Equipment Rubber Brick Making Machine Easy Installation
Public Sports Facilities Equipment Rubber Brick Making Machine Easy Installation
Public Sports Facilities Equipment Rubber Brick Making Machine Easy Installation
Public Sports Facilities Equipment Rubber Brick Making Machine Easy Installation
Specifications
Place of Origin :
Jiangsu, China
Model Number :
XLB
Brand Name :
XD
Certification :
CE CCC CQC ISO
Supply Ability :
20 Set/Sets per Quarter
Packaging Details :
to be wrapped with a plastic film, then packed in a wooden case according to the size of machine, usually packed by seaworthy packaging like container, sometimes subject to the requirement of customers.
MOQ :
12345 Set/Sets
Price :
Negotiable
Condition :
New
Voltage :
380V 50Hz
Dimension(L*W*H) :
1.7*1.7*2(m)
Weight :
2T
Name :
Public Facilities Rubber Brick Making Machine
Specification :
Carbon steel
Capacity :
4-6sqm/hour
Layers :
4
Heating plate size :
500*500mm
Color :
Blue, green, white or as per customer requirement
The distance between layers :
150mm
Compressing pressure :
50T
Power of hydraulic system :
3KW
Heating power of hot plate :
20kw
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
23Kw
Warranty :
1` year
Port :
Shanghai for Public Facilities Rubber Brick Making Machine
Description

Public Facilities Rubber Brick Making Machine

The machine is used for mixing rubber granule to make rubber brick, feeding rubber granule, dye powder and adhensive, then mix them evenly, after this, you can mold rubber brick of different specifications with them.

Model 800
Capacity(kg/batch) 50
Mixing time(min) 2~5
Motor power(kw) 1.5
Weight(t) 0.45
Dimension(m)(L*W*H) 0.8*1.2*1.2

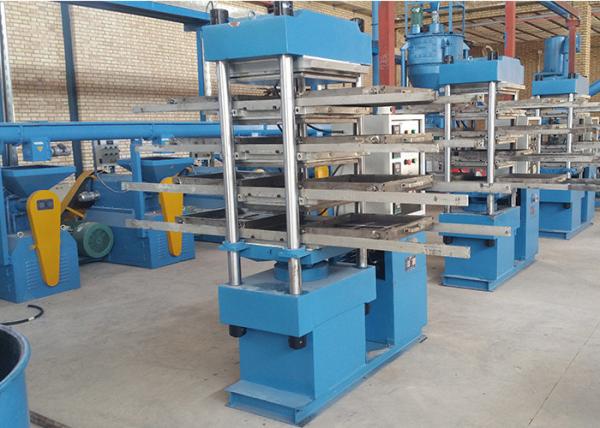

The machine is special vulcanizing equipment for making rubber bricks, each layer is equipped with two sets of molds to make rubber bricks in turns, manual mold pulling device for easy operation.

Model D500*500-4 D600*600-4
Capacity(m²/10 minute) 1 1.5
Folding force(MN) 0.5 1
Heating plate size(mm) 550*550 650*650
Layer distance(mm) 150 180
Layers 4 4
Power(kw) 3+20 5.5+2.5
Weight(T) 2 2.8
Dimensio(m)(L*W*H) 1.7*1.7*2 1.9*1.9*2.1
