TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation
TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation
TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation
TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation
TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation
TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation
Specifications
Brand Name :
XD
Model Number :
CSJ-400A
Certification :
CE,CCC,CQC,ISO
Place of Origin :
Jiangsu, China
MOQ :
12345 Set/Sets
Price :
Negotiable
Supply Ability :
50 Set/Sets per Quarter
Packaging Details :
to be wrapped by a plastic film and packed in a wooden case according to the size of machine and usually packed by seaworthy packaging like container and sometimes according to the requirement of customers.
Type :
Tire Machine
Condition :
New
Tire Machine Type :
Tire Recycling Machine
Voltage :
380V 50Hz
Dimension(L*W*H) :
1.1*1*1.6(m)
Key word :
machine
Weight :
0.9T
Warranty :
1year
Power(W) :
15000
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Shanghai
Description

TQJ Ring Cutting Rubber Recycling Machine 1440 R / Min Easy Installation

Main technical parameters
Dimensions (L × W × H) (mm): 1500 × 1100 × 1500

Production efficiency (tires / hour): 40

Motor power (KW): 3

Motor speed (r / min): 1440

Equipment weight (kg): 330

(1) Equipment use:

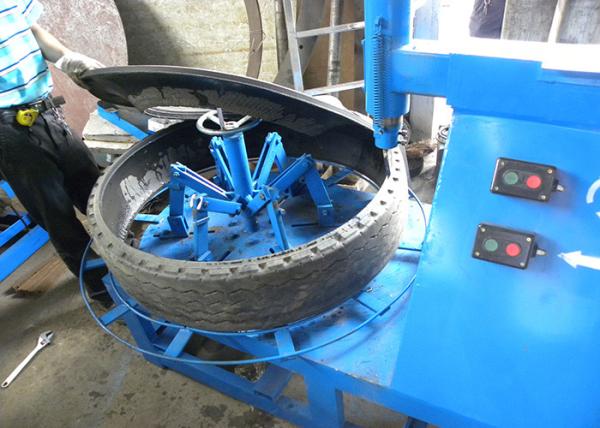

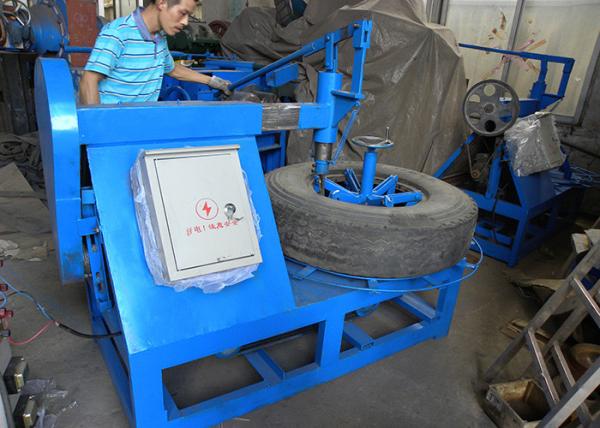

This machine is a special equipment for cutting and separating the steel mouth, sidewall and crown of waste tires, and it is the first process to deal with waste tires.


(2) Structure and principle:

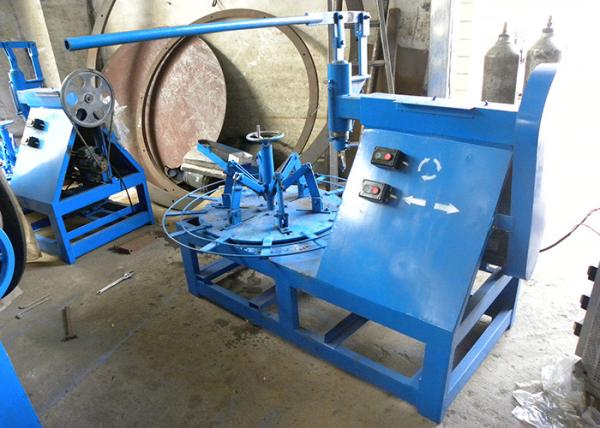

The machine is composed of frame, rotating mechanism, supporting mechanism, cutter mechanism and so on. The basic principle is to select the inner ring of the tire as the support point and place the inner ring on the support frame. The tire is firmly supported on the support frame through the adjustment mechanism of the support frame; the low-speed operation is obtained through the deceleration transmission mechanism; the cutting tool is installed on the tool holder, and the tool can be advanced and retracted as needed. You can cut the tire smoothly by moving the cutter while the tire is running at low speed and cutting into the tire.


(3) Features: The cutter is made of hard alloy, which is hard and durable.
