Specifications
Brand Name :
Xinda
Model Number :
CSJ-80
Certification :
ISO CE
Place of Origin :
Jiangsu, China, Jiangsu, China (Mainland)
MOQ :
1 Piece/Pieces
Price :
Negotiable
Supply Ability :
10 Piece/Pieces per Month
Packaging Details :
wooden box
Type :
mill
Application :
Powder
Name :
Coarse Crusher
Condition :
New
Voltage :
380v
After-sales Service Provided :
Engineers available to service machinery overseas, Engineers available to service machinery overseas
Power :
1.5kw
Warranty :
1 year
Port :
Shanghai
Weight :
150
Description
380v Powder Crusher Machine Csj Series Dust Absorption Crusher Pharmaceutics
Product Description

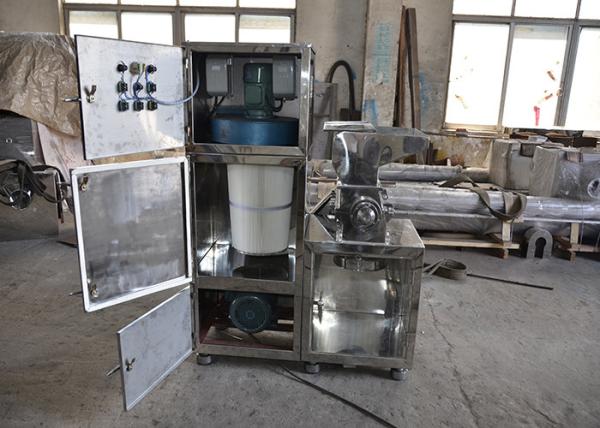

Xinda CSJ SERIES DUST ABSORPTION CRUSHER

Main Application
The machine is applied in the industries of pharmaceutics, chemical and foodstuff, representing a new generation combining dust absorption and grinding.
Working Method

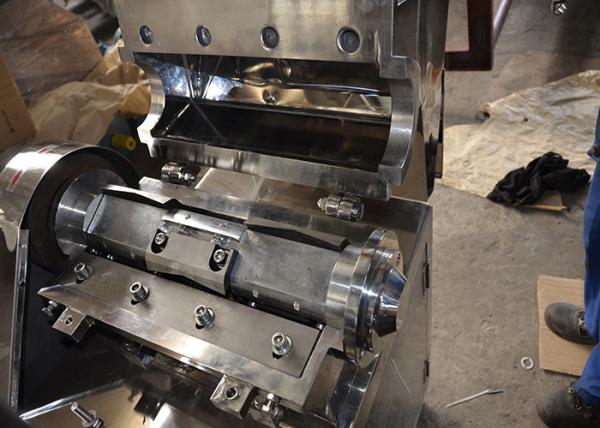

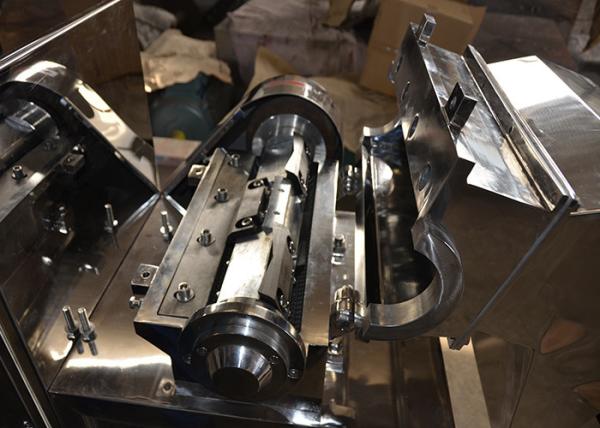

The machine utilizes the impact of revolving and fixed knives to cut and grind raw material that will automatically enters into collection box after cutting. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, thus to improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level.

Working Method

The machine has horizontal crushing structure and the whole machine is made of stainless steel. Any raw material, being feed into the grind chamber through the upper feeder, stroked by the revolving and fixed knives, cut and grinded and then automatically runs to the exit by the centrifugal force of revolving object. The machine is designed according to GMP standard, with the characteristics of compact structure, easy washing, and low noise. So it is the most ideal new product in current crusher market.

Technical Data

Technical Data

MODEL MODEL 80B MODEL 120B MODEL 200B
Capacity (kg/h) 20－200 100－500 150－800
Size of input granules (mm) ≤50 ≤100 ≤100
Fineness of products (mm) 0.5-20 0.5-20 0.5-20
Speed of principal axis (r/min) 400 400 400
Grinding power (kw) 1.5 3 5.5
Dust absorption power (kw) 0.55 1.5 1.5
Weight (kg) 180 380 560
Overall size (L×W×H)
(mm)		 1100×500×1500 1200×600×1650 1300×700×1700
