Specifications
Place of Origin :
Jiangsu, China, Jiangsu, China (Mainland)
Brand Name :
Xinda
Model Number :
FL-250
Certification :
ISO CE
Supply Ability :
10 Piece/Pieces per Month
Packaging Details :
wooden box
MOQ :
1 Piece/Pieces
Price :
Negotiable
Type :
mill
Application :
Powder
Name :
FL Series Air Cooled Crushing Machine
Condition :
New
Voltage :
380v
After-sales Service Provided :
Engineers available to service machinery overseas, Engineers available to service machinery overseas
Motor Power :
2.2kw
Warranty :
1 year
Port :
Shanghai
Weight :
100KG
Description

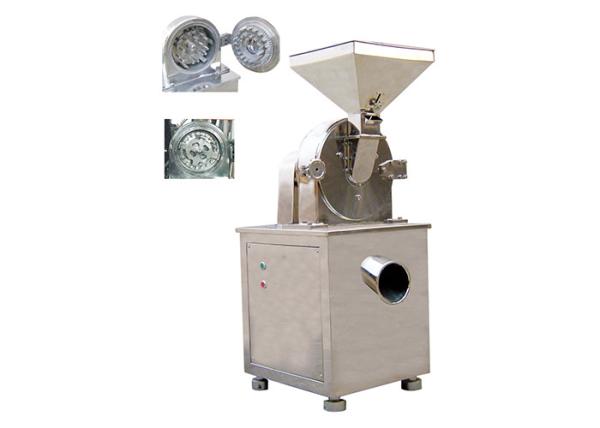

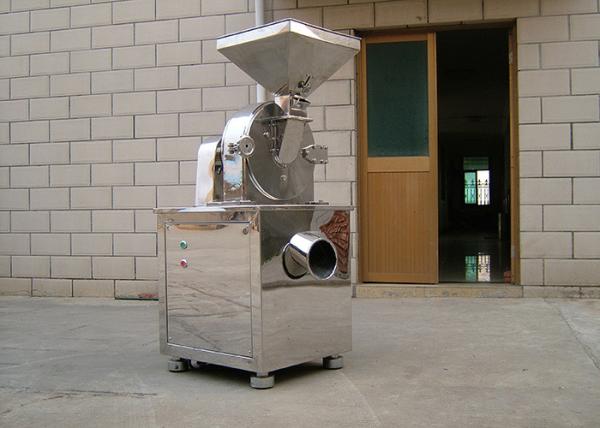

FL Series Air Cooled Crushing Machine Applied For The Material Crushing

Main Application
The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc.

Characteristics

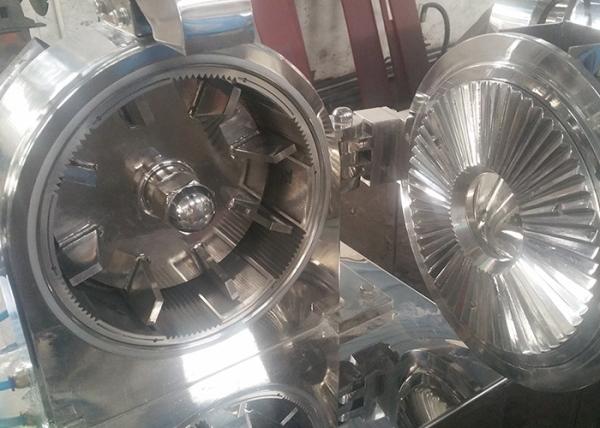

(1) The crushing chamber is equipped with the wind wheel type high-speed rotating cutter, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.
(2) It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.

Working Method:
(1) The machine uses the wind wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen.
(2) The size of granules can be achieved by changing of the screen.

Model 150 250 350 500
Capacity(kg/h) 20-80 30-200 50-300 80-500
Size of input granules(mm) < 10 < 10 < 12 < 15
Size of output granules(mesh) 12-120 12-120 12-120 12-120
Motor power(kw) 2.2 5.5 11 22
Speed of principal axis(r/min) 3000 2900 2900 2800
Weight(kg) 100 250 350 500
Overall size(L*W*H)(mm) 550*420*1400 750*550*1400 850*700*1600 850*850*1850
