High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer
High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer
High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer
High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer
High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer
High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer
Specifications
Place of Origin :
Henan, China
Brand Name :
YIHU
Supply Ability :
10 Set/Sets per Month
Packaging Details :
super High Efficient Spiral Classifier with micronizer Packing machine with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation. Then, we will choose the most convenient and economic way.
MOQ :
1 - 2 Sets
Price :
$2500~8000 set
Certification :
CE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7~15 Work days
Condition :
New
Type :
Flotation Separator, classifier
Voltage :
Customized
Product name :
Air Classifier Mill Airflow Classifier
Application :
Gold
Keywords :
Air Classifier
Usage :
Classification
Color :
Customers' Requirements
Function :
Screening\separation\sorting\sieving
Machine type :
Automatic
Description

High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer

Product Description

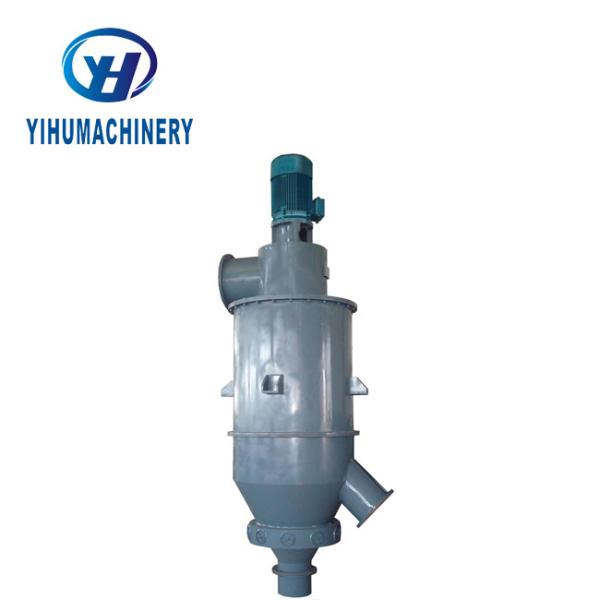

YAF series vertical air classifier is my company independent research and development of a new type of grading equipment, specifically for the material of ultrafine classification, can also be used with various crushing equipment (vibration mill and roller mill, Raymond mill) form a complete set of ultra-fine powder processing production line, all kinds of powder is prepared. The YAF series vertical airflow classifier is suitable for the classification of superfine powder dry method, especially for the classification of large industrial products.
High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer

Product Details

High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer

Model Capacity(t/h) Size(um) Efficiency(%) Power(kw)
YAF050 0.1~0.5 2~100 70-8 25-30
YAF100 0.5~1.0 41-48
YAF200 10.~3.0 63-73
YAF400 2.0~8.0 97-120
YAF600 5.0~15 140-169
YAF800 10~25 200-250
YAF1000 20~50 250
Our machine can customized!!!

High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer

High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer

Working Principle

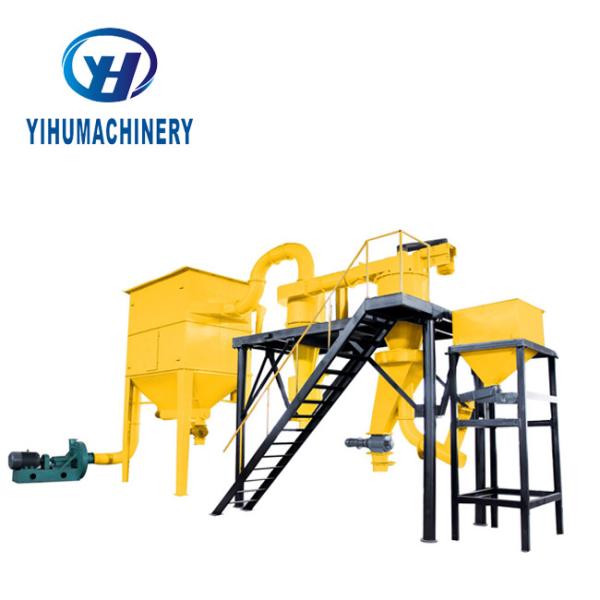

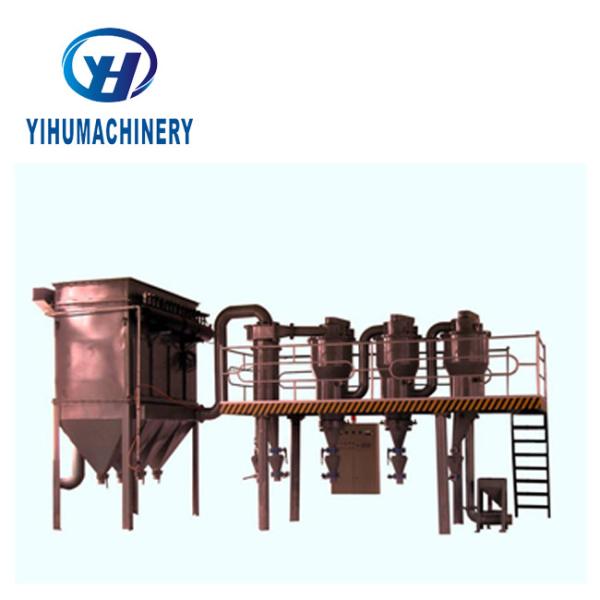

The classifying device is composed of air classifier ,cyclone,pulse dust collector high pressure fan,control cabinet and so on.Equipped with second air inlet and vertical inpeller rotor ,the materials are fed in visa the bottom roller under the force generated from the high pressure fan and then mixed with first input air to disperse particle and then brought to classifying zone. owing to the high rotary speed of classifying rotor and centripetal force generated fron high pressure fan .When the centrifugal force is stronger than the centripetal force,the coarse particles fall down along inside roller.the second air is induced to sieve the coarse material and separate the fine powder are collected by the cyclone and pulse dust collector.

Related Products

High Efficient Powder Screening Equipment / Powder Spiral Classifier With Micronizer


Company Information

Xinxiang Yihu Machinery Equipment Co.,Ltd is an innovative enterprise integrated with technology research, manufacture and trade. Our enterprise is professional in Conveyor, hoist, vibrating screen, feeding machine, mixer, dust–proof equipment etc. We can provide you with professional design to meet your needs.
