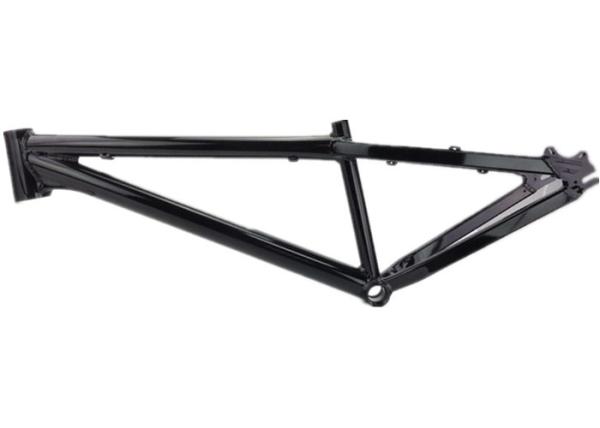

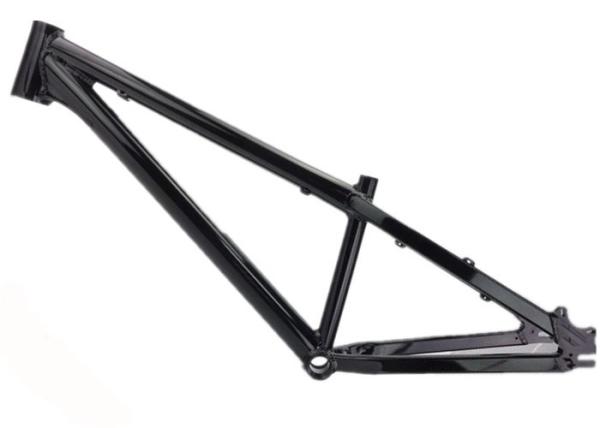

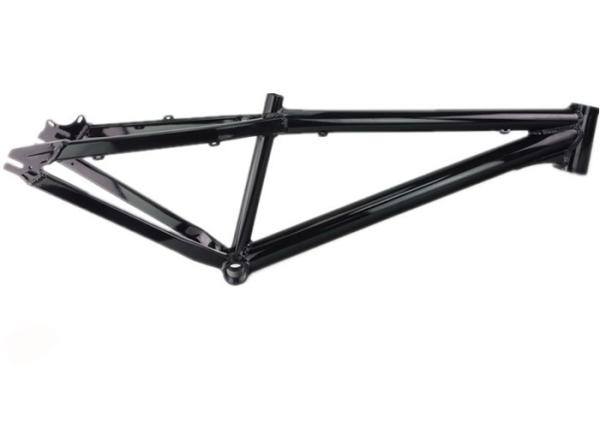

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
Specifications
Brand Name :
OEM
Model Number :
DJ-LQ2601
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 PCS per Month
Delivery Time :
60 Days
Packaging Details :
2 PCS / Carton
Material :
6061 Aluminum Alloy
Wheel Size :
26 Inch
Headtube :
1-1/8" to 1-1/2"
Bottom Bracket :
Euro Type BB
Description

6061 Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

Features

Lightweight, strong and responsive, the DJ frame has all the features you would expect, it's designed to work best with forks from 100-140mm of travel and features a semi-integrated tapered head tube which can accept forks with both standard 1-1/8" or tapered 1.5" to 11-1/8" steerer tubes.

Specifications

Material: AL6061-T6

Rommended fork travel: 80-140mm

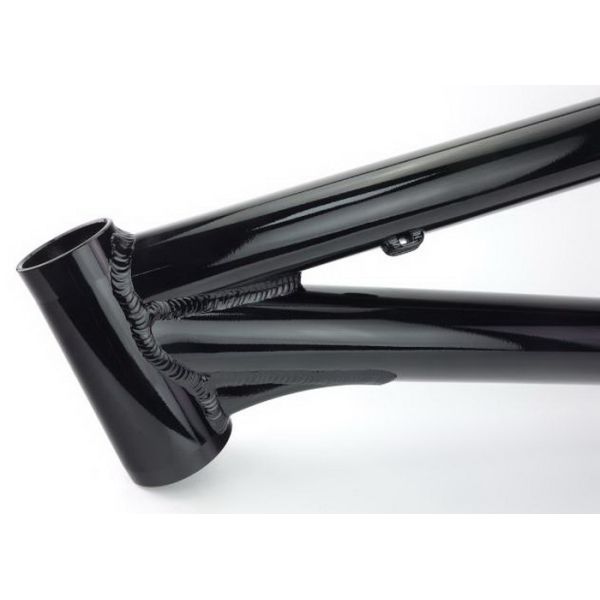

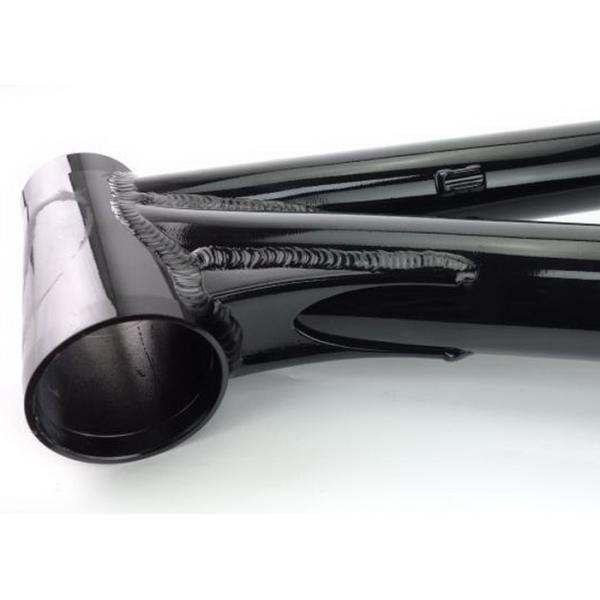

Head tube: semi-integrated tapered IS44/IS56, head tube length 115mm

Fits forks: fits forks with standard 1-1/8" or tapered 1.5" to 1-1/8" steerer tubes

BB: threaded 68mm

Biggest chainring: up to 32T

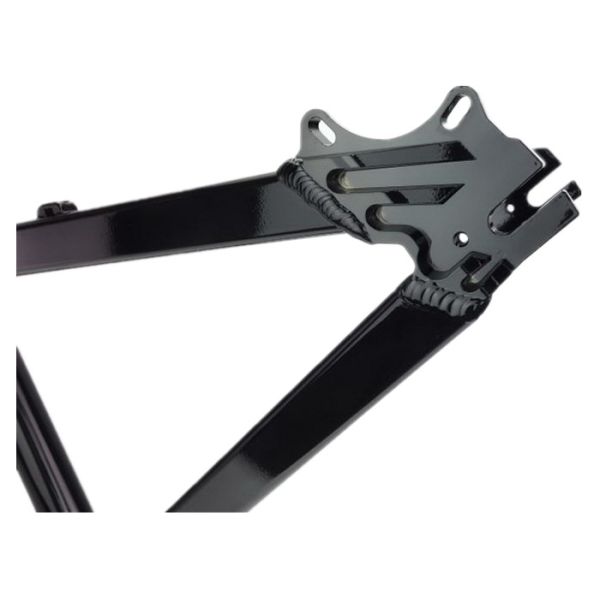

Rear hub: 135x10mm, horizontal dropouts, suggested bolt-on hubs

Disc brake: IS disc brake mount, max rotor size up to 180mm

Seat post/clamp: 27.2mm / 31.8mm

Max tire: 26" x 2.35"

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
