Specifications
Brand Name :
daxin
Model Number :
DX-U-1K-20
Certification :
CE,UL
Place of Origin :
shenzhen
MOQ :
10
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Packaging Details :
Wooden pallet+cardboard box
Color :
Ral7035 or Ral7032
Type :
battery/ meter box,Outdoor
Protection level :
IP55
Thickness :
1.2/1.5/2.0mm(Can be customized)
Warranty :
1 Year
Frequency :
50HZ/Customized
Description

System features:

■ With unmanned operation function, it is more suitable for places with few guards such as base stations and mountaintops

Equipped with a high current charging and management system, it can adapt to managing lithium iron phosphate batteries or ordinary lead-acid batteries

Fully adopting DSP digital control technology, the product is more stable and the quality is superior

■ Working range of AC input voltage: 172-268Vac

Adopting active power factor correction, the power factor can reach up to 0.98

DC input overvoltage and undervoltage protection

The load power factor is 0.8, with stronger carrying capacity

The system operates within a wide temperature range of -15 ℃ to+55 ℃

■ Wide input voltage frequency range, able to work normally even in remote areas with extremely harsh power environments, reducing battery discharge times and improving battery life

Dual transformation online working mode, zero switching, effectively ensures the safety and reliability of load operation

■ Comprehensive remote monitoring function, providing standard RS232 interface, RS485 interface and optional network monitoring card, dry contacts can also be selected,

Protection level: IP54 for outdoor use and IP20 for indoor use

Model AAM500-12V AAM500-24V AAM1K-24V AAM1K-48V AAM2K-48V AAM3K-48V
nameplate capacity 500VA/400W 1KVA/800W 2KVA/1.6KW 3KVA/2.4KW
AC input Rated voltage 220VAC, input harmonic 3%
DC input Rating12V Rating24V Rating24V Rating48V Rating48V Rating48V
AC output 220V AC Inverter output；
Dynamic voltage transients:5%；
Dynamic transient recovery time: 60ms；
THD :3%(Linear load)；THD :8%(Nonlinear load)；
Overload capacity: 130% continuous not less than 20s;
Peak coefficient of output current:3:1；
DC and AC switching time:0ms；
Invert to bypass switch time:4ms
Charging current 5-7A
Protection function DC input over-voltage protection, under-voltage protection, output over-voltage protection, overload protection, over-temperature protection, short circuit protection
Operation Mode Front operation front wiring Front operation followed by wiring

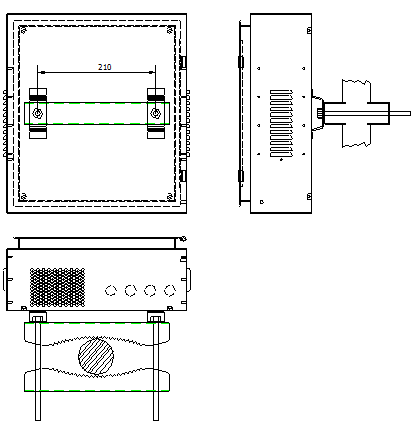

Installation mode
