High-Reliability Design

• True Double-Conversion Online Technology delivers frequency synchronization, phase locking, voltage stabilization, and noise filtering - completely isolating loads from grid fluctuations. Pure sine wave output provides ultimate protection for sensitive equipment.
• Dual-CPU Redundant Control System ensures maximum operational reliability and stability while maintaining optimal efficiency.
• Smart Adaptive Charging with CPU-controlled current regulation based on battery capacity.
• Advanced Input Filtering complies with IEEE/EN standards, minimizing feedback pollution to the utility grid.
• Active PFC Technology maintains near-unity input power factor (≈1) across all load and voltage conditions.
• Wide Input Voltage Range (380VAC ±25%) reduces battery cycling in poor power environments.
• Generator-Friendly Design with high-speed synchronization and soft-start capability (requires only 2:1 generator sizing).
• Comprehensive Harmonic Mitigation with input/output filters to minimize THDi.
• DC Cold-Start Function for emergency operation without AC input.

​

Comprehensive Protection System

• Multi-Layer Safeguards: Output overload/short-circuit protection, inverter overtemperature shutdown, battery undervoltage/overcharge protection.
• Maintenance Bypass Switch enables seamless transition to utility power for uninterrupted maintenance.

Intelligent Monitoring & Control

• LCD Interface provides real-time status monitoring and parameter display.
• Remote Management via RS232/RS485, SNMP, and monitoring software.
• Optional Battery Monitoring Module with per-cell voltage detection and alarm functions (over/under voltage, imbalance).

Rugged Construction

• Fully-Sealed Enclosure with conformal coating (dust/moisture/corrosion protection) for harsh environments (tunnels, outdoor installations).

EX 3C3 10K UPS Specifications / Technical Parameters

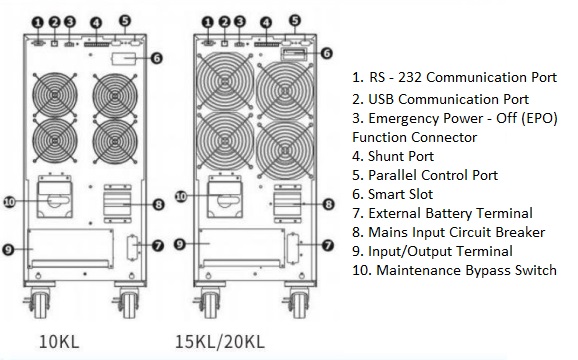

Back View:
