75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
75ohm Shanghai Qifan Multi Core Coaxial Cable Rg59/RG6/Rg11
Specifications
Certification :
ISO
Model NO. :
special cable
Wire Core Material :
Bare Copper Wire
Model :
Qifan
Brand :
Qifan
Quality Control :
100%
Color :
Black
Transport Package :
Rolls
Specification :
copper cable
Trademark :
Qifan
Origin :
China
HS Code :
8544492100
Supply Ability :
50000K Meter/ per Month
Application :
Local Communication Cable, Coaxial Cable, LAN Cable, Long Distance Symmetric Cable
Conductor Material :
BC/CCS/CCA/TC/CU/CCAG
Cover Material :
PVC
Type :
Cat 6
Material Shape :
Round Wire
Conductor Type :
Solid
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Place of Origin :
China
Brand Name :
Qifan
MOQ :
100m
Price :
usd3-8/meter
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Delivery Time :
30-45days
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Description

Product Description

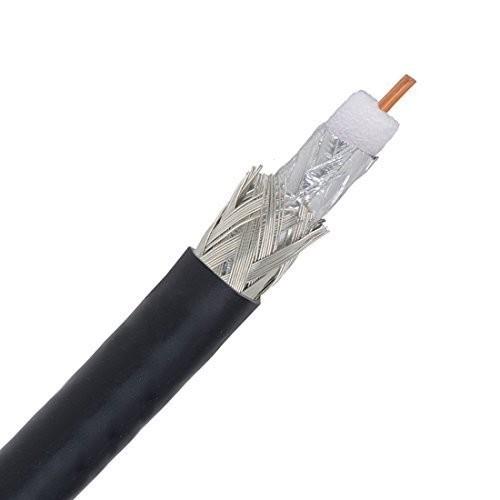

Shanghai Qifan Cable 75ohm Rg59/RG6/Rg11 Coaxial Cable
Application:
Used as a distribution cable for Outdoor CATV, CCTV systems and as a connection cable for satellite systems
where lower attenuation required.
Construction(Standard Shield) Diameter(mm)
Item Material RG59 RG6 RG11
Center Conductor Copper Clad Steel/BC 0.81 1.02 1.63
Dielectric Foam PE 3.66 4.57 7.11
1st Shield Bonded Aluminum Foil 3.84 4.75 7.29
2nd Shield Aluminum Wire Braiding/CCA40%-90% / / /
Jacket PVC 6.10 6.91 10.16
Electrical Charateristics
Impedance(Ω) 75±3
Capacitance(pF/m) 52±2
Velocity of Propagation(%) 85.0
Shielding Effectiveness
5-1000MHZ(dB) ≥80%
Return Loss
5-1000MHZ(dB) ≥22
1000-2000MHZ(dB) ≥20
Attenuation @68°F.(20 ºC )
@Frequency(Mhz) Max Attenuation(dB/100m)
RG59 RG6 RG11
5 2.82 1.90 1.25
55 6.73 5.25 3.15
187 11.81 9.35 5.74
211 12.47 10.00 6.23
400 16.73 13.61 8.53
500 18.70 15.29 9.51
750 22.87 18.54 11.97
865 24.67 20.01 13.05
1000 26.64 21.49 14.27
1500 32.50 26.80 16.80
1800 35.60 28.90 18.60
2200 41.20 32.20 20.70
3000 45.20 37.60 24.90
RS Coaxial Cable Specification is accordingly to Commscope/Belden/TFC Standard,Such as Standard Shield/tri-shield, Quad Shield Cable. With messenger/without messenger

Packing & Shipping
(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
