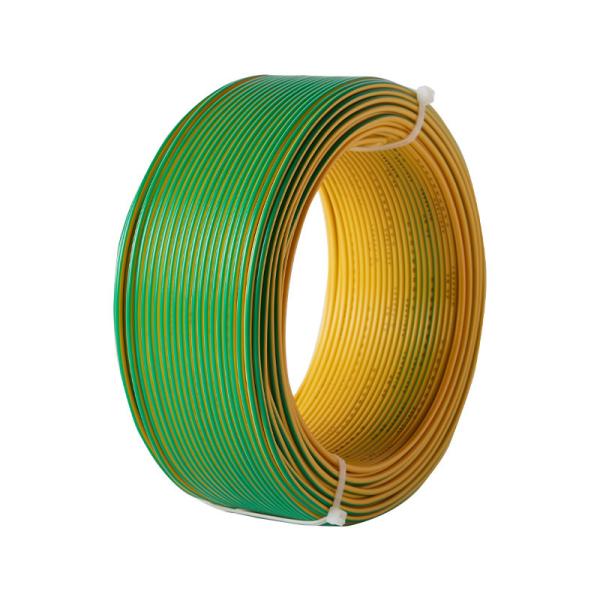

450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical Wire Flexible Wire and Cable
Specifications
Certification :
ISO, CCC, CE, RoHS, VDE, TUV
Model NO. :
H07V-K BV
Wire Core Material :
Annealed Soft Copper
Model :
H07V-K BV
Brand :
Qifan
Sample Free :
Yes
Standard :
IEC VDE BS En
Plant No. :
3 Plant with 12 Workshop
Engineer No. :
206
Transport Package :
Roll Drum
Specification :
0.75-400mm2
Trademark :
QIFAN
Origin :
China
HS Code :
85444921
Supply Ability :
50000K Meter/ per Month
Application :
Construction, Overhead, Underground, Industrial
Voltage :
Low Voltage
Current :
DC & AC
Insulation Material :
PVC
Sheath Material :
N/a
Material Shape :
Round Wire
Samples :
US$ 0/Meter 1 Meter(Min.Order) | Request Sample
Place of Origin :
China
Brand Name :
Qifan
MOQ :
100m
Price :
usd3-8/meter
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Delivery Time :
30-45days
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Description

Product Description

450/750V 2.5mm2 4mm2 6mm2 10mm2 16mm2 Multicore Copper Wire PVC Electrical wire Flexible Wire and Cable Building Wire H07V-K

1.Application:
Fixed wiring,civil power,mobile equipment

2.Construction

Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5~400mm2
We can according to our client's need and also provide technical data

3.Characteristic

Rated Voltage:
450/750V More-than 1.5mm2 single core conductor
300/500V Less-than 1.5mm2 single core and multicore conductor
300/300VLess-than 1.5mm2 multicore conductor

Test Voltage:
AC 1500V/5Min for 0.5~1mm2 multicore conductor
AC 2000V/5Min for 0.5~1mm2 single core and multicore conductor
AC 2500V/5Min Other.

Color of Insulation:
Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.

Notes
1, Ambient temperature for insulation shall not be lower than 0ºC.
2, At nominal conditions, the conductor's operating temperature is -15ºC to +70ºC
3, Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.

4.Standard
IEC 60227-2007 or as per customer's request
Some Type (Remarks: we can design and produce according to customer's request.)

Construction:
CU/PVC/PVC (NYM) 300/500 VOLT

CU/PVC/PVC (NYMHY) - 300/500 VOLT

CU/PVC/PVC (NYY) - 0.6/1 kV

CU/PVC/PVC (NYYHY) - 450/750 VOLT

CU/PVC (NYA) - 450/750 VOLT

CU/PVC (NYAF) - 450/750 VOLT

H07V-U/H07V-R/H07V-K PVC Flexible Cable

H05V-U/H05V-K/H05V-R PVC Cable

H03VV-F/H05VV-F PVC/PVC Flexible Cable

Type Name Laying Site and Requirements Long-time Permissible Working Temperature of Conductor(ºC)
227IEC01/05 BV BLV Copper Conductor,PVC Insulated Wire Fixed laid in the circumstance of indoor, conduit etc. 70
Aluminium Conductor,PVC Insulated Wire
227IEC 07 BV-90 Heat Resistant Copper Conductor,PVC Insulated Wire at 90ºC Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc. 90
BVR Copper Conductor,PVC Insulated Flexible Wire Fixed laid where flexibility is required. 70
227-IEC10 BVV Copper Conductor PVC Insulated and PVC Sheathed Round Wire Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground. 70
BLVV Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire
BVVB Copper Conductor PVC Insulated and PVC Sheathed Flat Wire
BLVVB Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire
227IEC 02 RV227 IEC 06 RV Copper Conductor,PVC Insulated Flexible Connector Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required. 70
227IEC 42 RVB Copper Conductor,PVC Insulated Flat Flexible Connector
RVS Copper Conductor,PVC Insulated Flexible Twisting Connector
227IEC52 RVV 227IEC53 RVV Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type)
------Our Feature------
  1. Imported equipment with experienced technical team
    The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
  2. Complete certification system
    Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
  3. Perfect Production system
    Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
  4. Perfect Sales service system
    Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
