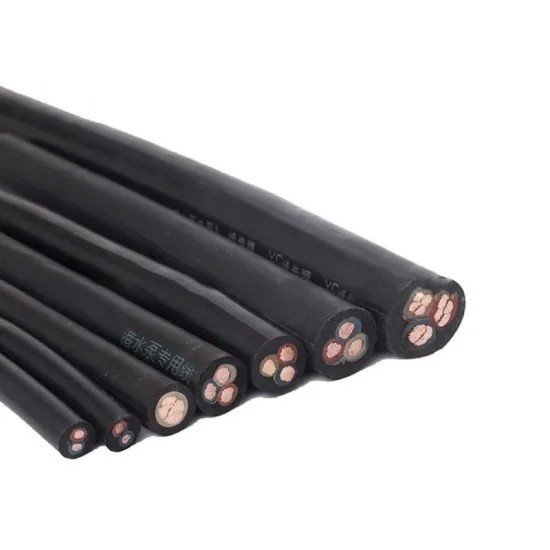

Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2d
Specifications
Certification :
ISO9001, CE, CCC
Brand Name :
Qifan
Model Number :
YH YHF H01N2D
Place of Origin :
China
MOQ :
100m
Price :
usd3-8/meter
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000km/Month
Delivery Time :
30-45days
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Model NO. :
YH YHF H01N2D
Material Shape :
Round Wire
Range of Application :
Machine
Brand :
QIFAN
Types :
H01n2d
Size :
10-185mm2
Standard :
IEC ASTM VDE BS DIN
Transport Package :
Roll Drum
Specification :
10-300
Trademark :
QIFAN
Origin :
China
HS Code :
8544492100
Type :
Insulated
Conductor Type :
Flexible
Application :
Heating, Welding Machine
Conductor Material :
Flexible Copper
Sheath Material :
Rubber
Insulation Material :
Rubber
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Description

Product Description

Flexible Rubber Welding Wire Cable 35mm2 50mm2 70mm2 Copper for Industrial Welding Cable YH YHF H01N2D
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature

CONSTRUCTION
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound,

Technical data
Voltage Rating
100V
Working temperature:65ºC

Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter


Model
Name
Main applications
Working temperature
of core ≤0C

YH
Natural Rubber Sheath for Welding Cable
Always used indoor
65

YHF
Neoprene Rubber Sheath Welding Cable
Always used outdoor
65

Synthetic elastomer Sheath Welding Cable

3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)
Conductive Core
Thickness of Section Sheath (mm)
Average Outer Diameter (mm2)
20oC Conductor Resistance≤(Ω/km)
Reference Weight(kg/km)

Number/Diameter of Core(mm)
Min
Max
YH
YHF

10
322/0.20
1.8
7.5
9.7
1.91
146
153

16
513/0.20
2.0
9.2
11.5
1.16
218
230

25
798/0.20
2.0
10.5
13.0
0.758
316
331

35
1121/0.20
2.0
11.5
14.5
0.536
426
439

50
1596/0.20
2.2
13.5
17.0
0.379
592
610

70
2214/0.20
2.4
15.0
19.5
0.268
790
817

95
2997/0.20
2.6
17.0
22.0
0.198
1066
1102

120
1702/0.30
2.8
19.0
24.0
0.161
1348
1392

150
2135/0.30
3.0
21.0
27.0
0.129
1678
1698

185
1443/0.40
3.2
22.0
29.0
0.106
1983
2020

Rubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2dRubber Insulated Cable Flexible Rubber Welding Cable 70mm2 25mm2 Copper for Industrial Yh H01n2dWhat is XLPE insulated power cable?

XLPE insulation is a type of insulation used in the power cable. It's a relatively new type of insulation that offers some unique features compared to traditional insulation materials.

One common type of XLPE is sheathed cable, a tube-like insulation covered in a protective sheath. This type of cable typically has an outer diameter of 3/8 inches (9 mm) or less and is suitable for applications with critical flexibility and durability.

The unsheathed cable typically has an outer diameter of 5/16 inches (8 mm) or greater and is best suited for applications where durability and resistance to corrosion are essential. This cable type is typically used in electric traction lines, switchgear, and heavy construction equipment applications.

What are the key benefits of using XLPE-insulated power cables?

The benefits of using XLPE-insulated power cables are significant. These cables offer many advantages over other types of insulation, such as being more flexible and lighter weight. Additionally, they are often less costly to produce, which can lead to savings on your energy bills. It is important to understand the different types of XLPE to choose the right style for your application. Additionally, XLPE cables have a low impedance which means they can carry higher currents without deteriorating performance. They also have low capacitance, reducing crosstalk and noise interference.
