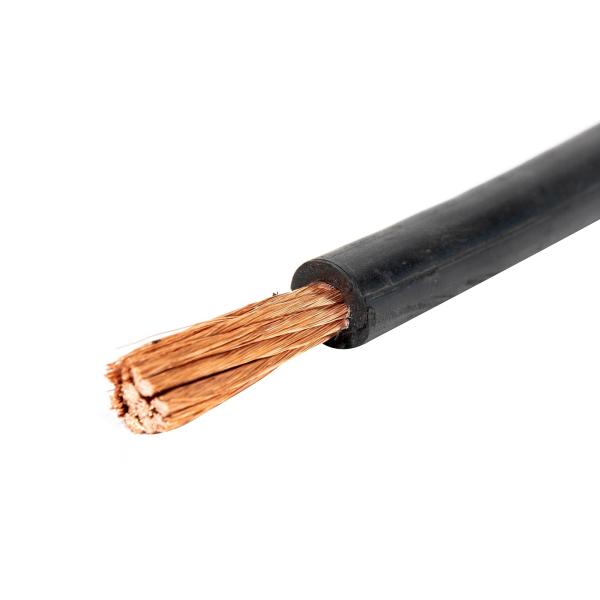

Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi
Specifications
Certification :
ISO9001, CE, CCC
Model NO. :
rubber cable
Material Shape :
Round Wire
Range of Application :
Machine
Brand :
QIFAN
Transport Package :
Roll Drum
Specification :
10-300
Trademark :
QIFAN
Origin :
China
HS Code :
8544492100
Supply Ability :
50000K Meter/ per Month
Type :
Insulated
Conductor Type :
Flexible
Application :
Welding Machine
Conductor Material :
Flexible Copper
Sheath Material :
Rubber
Insulation Material :
Rubber
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Place of Origin :
China
Brand Name :
Qifan
MOQ :
100m
Price :
usd3-8/meter
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Delivery Time :
30-45days
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Description

Product Description

Flexible Rubber Welding Wire Cable 35mm2 50mm2 70mm2 Copper for Industrial
Welding Cable
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature

CONSTRUCTION
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound,

Technical data
Voltage Rating
100V
Working temperature:65ºC

Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter


Model
Name
Main applications
Working temperature
of core ≤0C

YH
Natural Rubber Sheath for Welding Cable
Always used indoor
65

YHF
Neoprene Rubber Sheath Welding Cable
Always used outdoor
65

Synthetic elastomer Sheath Welding Cable

3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)
Conductive Core
Thickness of Section Sheath (mm)
Average Outer Diameter (mm2)
20oC Conductor Resistance≤(Ω/km)
Reference Weight(kg/km)

Number/Diameter of Core(mm)
Min
Max
YH
YHF

10
322/0.20
1.8
7.5
9.7
1.91
146
153

16
513/0.20
2.0
9.2
11.5
1.16
218
230

25
798/0.20
2.0
10.5
13.0
0.758
316
331

35
1121/0.20
2.0
11.5
14.5
0.536
426
439

50
1596/0.20
2.2
13.5
17.0
0.379
592
610

70
2214/0.20
2.4
15.0
19.5
0.268
790
817

95
2997/0.20
2.6
17.0
22.0
0.198
1066
1102

120
1702/0.30
2.8
19.0
24.0
0.161
1348
1392

150
2135/0.30
3.0
21.0
27.0
0.129
1678
1698

185
1443/0.40
3.2
22.0
29.0
0.106
1983
2020

Rubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric WiRubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric WiRubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric WiRubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric WiRubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric WiRubber Insulated Cable PVC Insulated Jacket Sheathed Flexible Copper Welding Machine Electric Wi

Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.

Fang Yu (Shanghai) products have passed China Compulsory Certification (CCC), coal mine product safety mark certification, China Classification Society certification, Telus certification, German TUV certification, European Union CE certification, and United States UL certification.
