Specifications
Certification :
ISO9001, CE, CCC
Brand Name :
Qifan
Model Number :
vvr
Place of Origin :
China
MOQ :
100m
Price :
usd3-8/meter
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000km/Month
Delivery Time :
30-45days
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Model NO. :
vvr
Material Shape :
Round Wire
Range of Application :
Machine
Brand :
QIFAN
Transport Package :
Roll Drum
Specification :
10-300
Trademark :
QIFAN
Origin :
China
HS Code :
8544492100
Type :
Insulated
Conductor Type :
Flexible
Application :
Welding Machine
Conductor Material :
Flexible Copper
Sheath Material :
Rubber
Insulation Material :
Rubber
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Description

Product Description

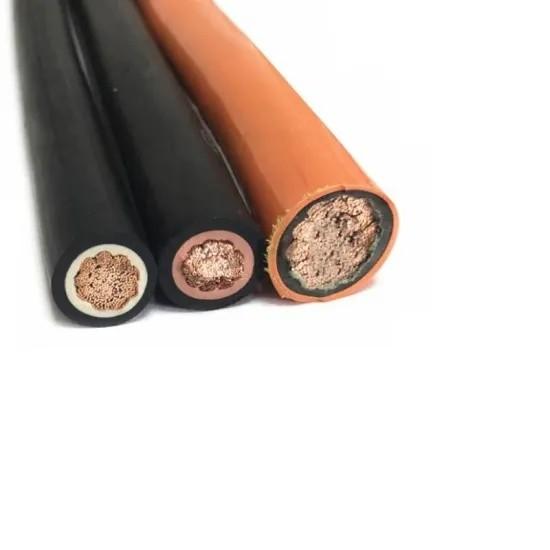

Black Wear Resistant Heat Resistant H05rn-F H07rn-F Rubber Cable Copper or Aluminum Stranded Flexible Conductor Rubber Insulation H01n2-D Welding Cable

Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature

CONSTRUCTION
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound,

Technical data
Voltage Rating
100V
Working temperature:65ºC

Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter


Model
Name
Main applications
Working temperature
of core ≤0C

YH
Natural Rubber Sheath for Welding Cable
Always used indoor
65

YHF
Neoprene Rubber Sheath Welding Cable
Always used outdoor
65

Synthetic elastomer Sheath Welding Cable

3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)
Conductive Core
Thickness of Section Sheath (mm)
Average Outer Diameter (mm2)
20oC Conductor Resistance≤(Ω/km)
Reference Weight(kg/km)

Number/Diameter of Core(mm)
Min
Max
YH
YHF

10
322/0.20
1.8
7.5
9.7
1.91
146
153

16
513/0.20
2.0
9.2
11.5
1.16
218
230

25
798/0.20
2.0
10.5
13.0
0.758
316
331

35
1121/0.20
2.0
11.5
14.5
0.536
426
439

50
1596/0.20
2.2
13.5
17.0
0.379
592
610

70
2214/0.20
2.4
15.0
19.5
0.268
790
817

95
2997/0.20
2.6
17.0
22.0
0.198
1066
1102

120
1702/0.30
2.8
19.0
24.0
0.161
1348
1392

150
2135/0.30
3.0
21.0
27.0
0.129
1678
1698

185
1443/0.40
3.2
22.0
29.0
0.106
1983
2020

Rubber InsulatedBlack Wear Resistant Heat Resistant H05rn-F H07rn-F Rubber Cable Copper or Aluminum Stranded Flexible CRubber InsulatedBlack Wear Resistant Heat Resistant H05rn-F H07rn-F Rubber Cable Copper or Aluminum Stranded Flexible CFang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.

FAQ

-------------------------------------------------------------------------------------------------

1. Who are we?

Fang Yu (Shanghai) Automation Technology Co., Ltd ,are based in Shanghai, China, start from 2006, is a professional company specializing in the sale of power cables and related products. We act as the overseas marketing center for Qifan Cable.

2. How can we guarantee quallty?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3. What can you buy from us?

Power cable ,UL certificate products,Fire resistant cable,Submarine Cable,ABC Cable,Building wire,Solar cable,Rubber Cable,Electrical Control Cable,digital communication cable,mineral insulated cable,Special wire and cable,Aerial Insulated Cable,High temperature resistant cable,

Solar cable,XLPE insulated power cable,computer cable,Aluminum stranded wire,PVC insulated wire and cable,digital communication cable,etc

4. Why should you buy from us not from other supplers?

For many years, we have been focusing on the research and development of wire and cable products. Our R&D team has over ten years of experience. All of our products are produced directly from the factory. We accept OEM and ODM!

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP ,FCA, CPT, DEQ, DDP ,DDU,

6. Can I get samples?

We are honored to provide you with samples, samples are provided free of charge, but need to pay for express shipping. If you have a courier account, you can send a courier to collect samples.

7.What is your packing way? Can I have the customized package?

We have the standard export package. For more details about the customized package, please contact us.
