Specifications
Certification :
ISO, CCC, CE, RoHS, TUV
Brand Name :
Qifan
Model Number :
N2XSERY YJV32
Place of Origin :
China
MOQ :
100m
Price :
usd3-8/meter
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000km/Month
Delivery Time :
30-45days
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Model NO. :
N2XSERY YJV32
Wire Core Material :
Pure Annealed Soft Copper
Model :
Yjlv32
Brand :
Qifan
Free Sample :
Yes
Staff :
3048
Standard :
IEC BS En VDE
Engineer No. :
206
Plant No. :
3 Plant with 12 Workshop
Transport Package :
Drum
Specification :
25-1600mm2
Trademark :
QIFAN
Origin :
China
HS Code :
8544601200
Application :
Construction, Overhead, Underground, Industrial, Power Station
Voltage :
Medium Voltage Cable
Current :
DC & AC
Insulation Material :
XLPE
Sheath Material :
PVC
Material Shape :
Round Wire
Samples :
US$ 0/Meter 1 Meter(Min.Order) | Request Sample
Description

Product Description

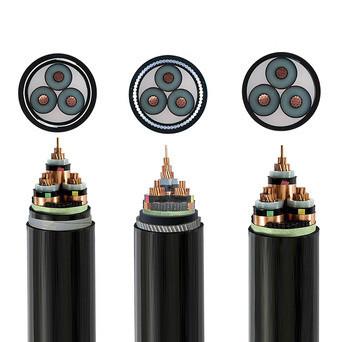

IEC60502 BS7835 BS6622 VDE N2XSERY YJV32 11kV 20kV 33kV Copper XLPE Insulated SWA STA Armoured Outdoor Energy Power Cable

1 Product Standard
This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS 6722, DIN, ICEA standard as customer request.
2 Application
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kv~26/35kv.
3 Operating characteristics
- Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
- Max.admissible operating temperature of the conductor:90ºC.
- Max. short-circurt temperature of conductor shall not exceed 250ºC. (5s maximum duration)
- The ambient temperature under installation should not below 0ºC.
- The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a multi-core cable should not less than 15 times of the cable diameter.

4 Table of the voltage, cores and cross-section
Item Category A ,B 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV
Category A ,B 6/6kV 8.7/10kV 12/15kV 18/20kV - 26/35kV
Single core mm2 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
Three core mm2 25-400 25-400 35-400 50-400 50-400 50-400
The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.

5 Type and Name
Type Designation Applications
YJV Copper conductor,XLPE insulated,PVC sheathed power cable For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY Copper conductor, XLPE insulated,PE sheathed power cable
YJLY Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22 Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22 Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23 Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23 Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32 Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.

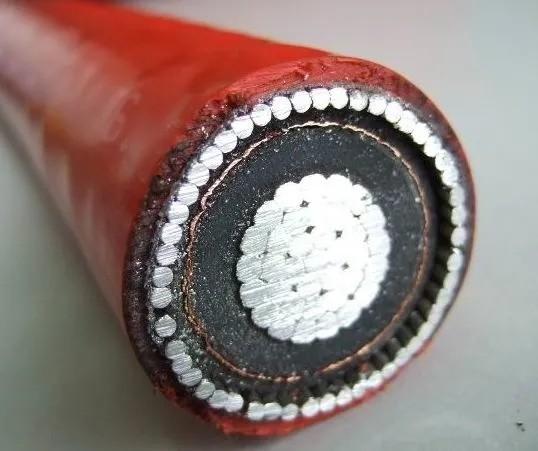

YJLV32 Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33 Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33 Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable

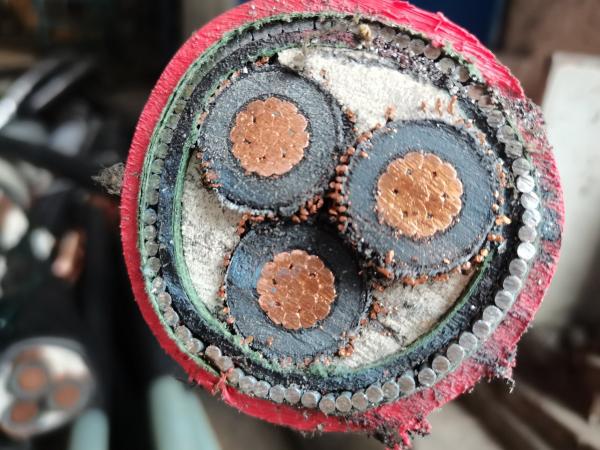

SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 3.6/6(7.2)kV 3.8/6.6(7.2) KV Cable Data

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

2.5

0.1

1.2

2.0

2.3

42.1

3317

2845

35

Compact round

7.2

2.5

0.1

1.3

2.5

2.5

46.7

4312

3651

50

Compact round

8.4

2.5

0.1

1.3

2.5

2.5

49.3

4972

4028

70

Compact round

10.0

2.5

0.1

1.4

2.5

2.7

53.3

5968

4646

95

Compact round

11.7

2.5

0.1

1.4

2.5

2.8

57.2

7033

5239

120

Compact round

13.1

2.5

0.1

1.5

2.5

2.9

60.6

8072

5807

150

Compact round

14.6

2.5

0.1

1.6

2.5

3.0

64.2

9288

6456

185

Compact round

16.3

2.5

0.1

1.6

2.5

3.1

68.1

10737

7245

240

Compact round

18.5

2.6

0.1

1.7

2.5

3.3

73.9

12869

8339

300

Compact round

20.7

2.8

0.1

1.8

3.15

3.5

81.8

16183

10520

400

Compact round

23.8

3.0

0.1

2.0

3.15

3.8

90.4

20070

12519

500

Compact round

26.6

3.2

0.1

2.1

3.15

4.1

99.3

24131

14692

SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 6/10(12)kV 6.35/11(12)kV cable date

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

3.4

0.1

1.3

2.5

2.5

48.0

4175

3703

35

Compact round

7.2

3.4

0.1

1.3

2.5

2.6

50.8

4733

4072

50

Compact round

8.4

3.4

0.1

1.4

2.5

2.7

53.8

5491

4547

70

Compact round

10.0

3.4

0.1

1.5

2.5

2.8

57.6

6446

5124

95

Compact round

11.7

3.4

0.1

1.5

2.5

2.9

61.5

7530

5737

120

Compact round

13.1

3.4

0.1

1.6

2.5

3.0

64.9

8628

6363

150

Compact round

14.6

3.4

0.1

1.6

2.5

3.1

68.3

9794

6963

185

Compact round

16.3

3.4

0.1

1.7

2.5

3.3

72.6

11326

7834

240

Compact round

18.5

3.4

0.1

1.8

3.15

3.5

79.2

14268

9737

300

Compact round

20.7

3.4

0.1

1.9

3.15

3.6

84.8

16641

10978

400

Compact round

23.8

3.4

0.1

2.0

3.15

3.9

92.3

20362

12811

500

Compact round

26.6

3.4

0.1

2.1

3.15

4.1

99.3

24203

14764

SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 12/20(24) KV 12.7/22(24)kV

Cable Data

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored wire diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

35

Compact round

7.2

5.5

0.1

1.5

2.5

2.9

60.8

5934

5273

50

Compact round

8.4

5.5

0.1

1.6

2.5

3.0

63.8

6706

5763

70

Compact round

10.0

5.5

0.1

1.6

2.5

3.1

67.5

7699

6378

95

Compact round

11.7

5.5

0.1

1.7

2.5

3.3

71.7

8932

7139

120

Compact round

13.1

5.5

0.1

1.8

3.15

3.4

76.4

10907

8641

150

Compact round

14.6

5.5

0.1

1.8

3.15

3.5

79.9

12187

9355

185

Compact round

16.3

5.5

0.1

1.9

3.15

3.6

83.9

13742

10250

240

Compact round

18.5

5.5

0.1

2.0

3.15

3.8

89.3

16001

11471

300

Compact round

20.7

5.5

0.1

2.1

3.15

4.0

95.0

18538

12875

400

Compact round

23.8

5.5

0.1

2.2

3.15

4.2

102.3

22314

14762

500

Compact round

26.6

5.5

0.1

2.3

3.15

4.4

110.2

26392

16953
SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 18/30(36)kV 19/33(36)kV Cable Date

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored wire diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

8.0

0.1

1.8

3.15

3.5

77.3

9333

8390

70

Compact round

10.0

8.0

0.1

1.8

3.15

3.6

80.9

10396

9075

95

Compact round

11.7

8.0

0.1

1.9

3.15

3.7

85.0

11723

9930

120

Compact round

13.1

8.0

0.1

2.0

3.15

3.8

88.4

12986

10720

150

Compact round

14.6

8.0

0.1

2.0

3.15

3.9

91.8

14220

11388

185

Compact round

16.3

8.0

0.1

2.1

3.15

4.0

95.9

15887

12395

240

Compact round

18.5

8.0

0.1

2.2

3.15

4.2

101.2

18144

13613

300

Compact round

20.7

8.0

0.1

2.3

3.15

4.4

107.0

20761

15097

400

Compact round

23.8

8.0

0.1

2.4

3.15

4.6

114.3

24824

17273

500

Compact round

26.6

8.0

0.1

2.5

3.15

4.8

122.2

29019

19580


------Our Feature------
  1. Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
  1. Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
  1. Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
  1. Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Medium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor EMedium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor E

Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.

Fang Yu (Shanghai) products cover four categories: power cables, electrical equipment wires and cables, communication cables, and bare wires.

Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional company specializing in the sale of power cables and related products. We act as the overseas marketing center for Qifan Cable.


Product tags

12 awg 3 conductor power cable

,

electrical power cable types

,

220kv xlpe insulated power cable
Send your message to this supplier
Send Now

Medium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor E

Ask Latest Price
Product Detail
Certification :
ISO, CCC, CE, RoHS, TUV
Brand Name :
Qifan
Model Number :
N2XSERY YJV32
Place of Origin :
China
MOQ :
100m
Price :
usd3-8/meter
Contact Supplier
Medium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor E
Medium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor E
Medium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor E
Medium Voltage Power Cable IEC60502 BS6622 VDE N2xsery Yjv32 33kv Copper XLPE Insulated Swa Sta Armoured Cable Outdoor E

Fangyu(shanghai)Automation Technology Co.,Ltd

Verified Supplier
2 Years
shanghai, shanghai
Since 1994
Business Type :
Distributor/Wholesaler, Agent, Seller
Main Products :
Low Voltage Power Cable, Medium Voltage Power Cable, High Voltage Power Cables
Total Annual :
10000000-15000000
Employee Number :
50~100
Certification Level :
Verified Supplier
Discover similar products
View More
Watch related videos

Find Similar Products By Category:

Supplier Homepage Products Medium Voltage Power Cable
MachineU China Products Electrical Equipment & Supplies Wires, Cables & Cable Assemblies Power Cables
Contact Supplier
Submit Requirement
