White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type
White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type
White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type
White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type
Specifications
Brand Name :
Betterliv/OEM
Model Number :
HCQ2832WW24S01
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, Credit Card
Product Size :
1.04''
Number of Pixels :
128x32
Pins :
24pin
Color :
White, Blue
Panel Size :
30.4x14.5x1.4mm
Active Area :
25.58x6.38mm
Interface :
Parallel、4-Wire SPI、I²C
Pixel Size :
0.18x0.18mm
Description

1.04 inch Small OLED Display Module 128*32 Dot White 24pin Soldering Type OLED Screen Parallel And SPI IIC Interface

Product Description

This is an OLED monochrome 128*32 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White or Blue)
3) Drive Duty: 1/64 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 100 cd/m2

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 1uA

Display Type: oled display
Display Mode: Passive Matrix
Model Number: HCQ2832WW24S01
Diagonal Screen size: 1.04 inch
Interface: Parallel, 4-wire SPI, I2C
Drive Duty: 1/32 Duty
Number of Pixels: 128x32

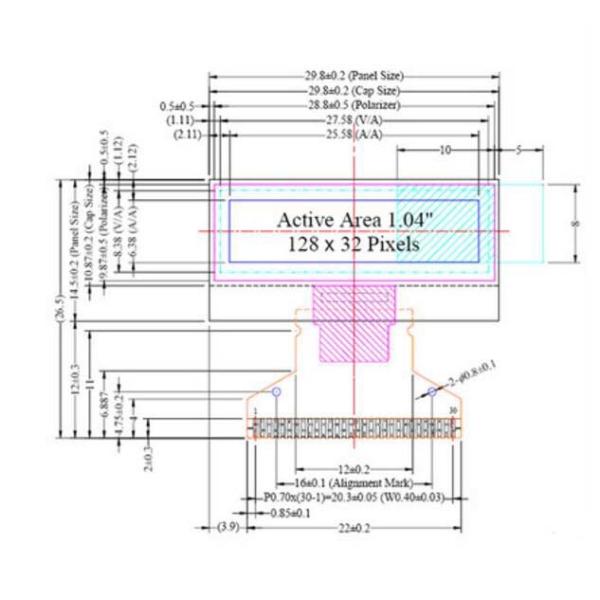

Panel Size: 30.40× 14.50 × 1.40 (mm)
Driver IC: SSD1306
Active Area: 25.58× 6.38(mm)
Pixel Size: 0.18 x 0.18 (mm)
Weight: 1.54 (g)
Operating Temperature: -40℃~85℃

White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type
