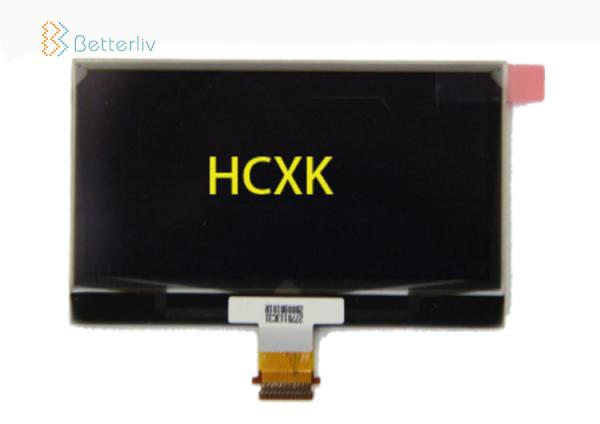

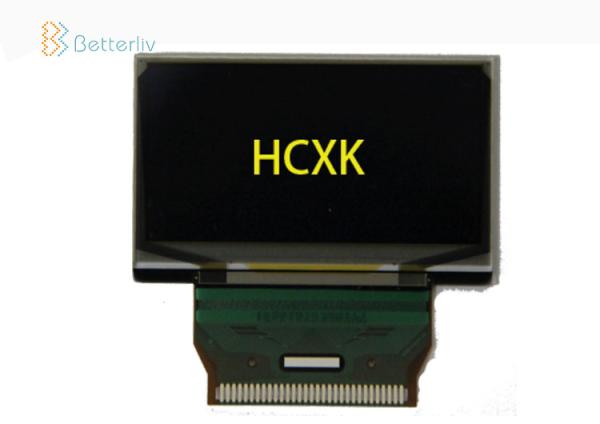

I2C OLED Display Module 128x64 Dots 2.4 Inch Monochrome White Yellow
I2C OLED Display Module 128x64 Dots 2.4 Inch Monochrome White Yellow
I2C OLED Display Module 128x64 Dots 2.4 Inch Monochrome White Yellow
I2C OLED Display Module 128x64 Dots 2.4 Inch Monochrome White Yellow
Specifications
Brand Name :
Betterliv/OEM
Model Number :
HCD2864YY31S01
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, Credit Card
Product Size :
2.4 inch
Number of Pixels :
128x64
Pins :
31 pin or 23 pin
Color :
White Or Yellow
Panel Size :
60.5x37.0x2.01mm
Active Area :
55.01x27.49mm
Interface :
Parallel, I²C, 4 Wire SPI
Pixel Size :
0.4X0.4mm
Module Construction :
COG Or TAB
Duty :
1/64
Description

Mini I2C 128x64 Dots 2.4 Inch OLED Display Module TAB COG Monochrome White Yellow

Product Description

This displays are 2.4" diagonal, and very readable due to the high contrast of an OLED display. This display is made of 128x64 individual OLED pixels, each one turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this graphic display for its crispness!

1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/64 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 120 cd/m2

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 1uA

Panel dimension 60.5x37.0x2.0
Active area 55.02x27.49
Pixel Pitch 0.43(W)×0.43 (H)
Diagonal A/A Size 2.4 inch
Dot Matrix 128(W)×64(H)
Aperture Rate 78%

Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
