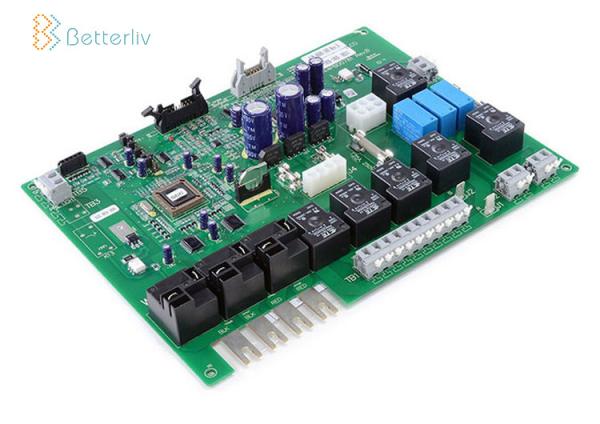

ISO 9001 PCBA Power Control Board HASL Surface Finishing
ISO 9001 PCBA Power Control Board HASL Surface Finishing
Specifications
Brand Name :
Betterliv/OEM
Model Number :
OEM
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, Credit Card
Board Thickness :
0.2mm-4.5mm
Min. Line Width :
0.08mm
Copper Thickness :
1/2 oz-4 oz
Finish Hole Size: :
PTH ±0.003'' ,NPTH ±0.002"
Base Material: :
FR4 CEM1 CEM3 Ceramic Aluminum
Board Thicknes :
0.2-4.0mm
SMT/DIP service: :
0.3mm IC,BGA,QFP,0201 components
Surface Finishing :
HASL-LF/OSP/ENIG etc
Description

ISO 9001 Power Adapter PCBA Flexible Circuit Power Control Board High-end PCB Assembly Service

Flexible Circuit Technical Parameter

Layers: 1-6 Layers
Min. Line Width: 0.05mm
Min. Hole Size: 0.15mm PTH
Min. PTH Hole Ring: 0.45mm
Min. Gap between Cover Layer and Pad: 0.1mm
Min. Gap between Trace and Outline: 0.2mm
Trace Width Tolerance: +/-0.03mm, W+/-30%
Outline Tolerance: +/-0.05mm L≤ 25mm
Hole Size Tolerance: +/-0.05mm
Stiffener and Outline Tolerance: +/-0.25mm
Surface Treatment: ENIG, Gold Plating, HAL, Plating Pb-Sn

One stop services
1. PCB manufacturing
2. Components souring
3. Final products assemblying
4. Consumer products manufacturing(charger, DC cinverter, DC power supply etc)

Product Application

ISO 9001 PCBA Power Control Board HASL Surface Finishing
