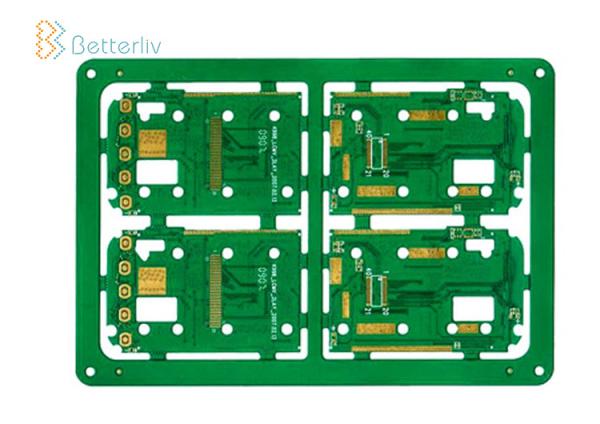

0.1mm 0.15mm 4 Layer PCB Board 0.5oz-6oz Copper Thickness OEM ODM service
0.1mm 0.15mm 4 Layer PCB Board 0.5oz-6oz Copper Thickness OEM ODM service
Specifications
Brand Name :
Betterliv/OEM
Model Number :
OEM
Certification :
ISO9001 FCC
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, Credit Card
Product Name :
4 Layer PCB
Base Material :
FR-4/aluminum/ceramic/cem-3/FR-1
Board Thickness :
0.1mm(Flash Gold)/0.15mm(HASL)
Copper Thickness :
0.5oz-6oz
Min. Hole Size :
0.15-0.2mm
Board Size :
Custom
Description

PCB Board Design 4 Layer PCB Board Prototype Printed Circuit Board Multilayer PCB Manufacturing

PCB Assembly Capability

Item Mass Production Pilot Run Production
Capacity Capacity
Material CEM1,CEM3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina)
Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880)Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc.
Material Mixed Laminate 4 layers -- 10 layers 12 layers
FR4+Ro4350 , FR4+Aluminium , FR4+ Polyimide
Board Outline Tolerance ±0.15mm ±0.10mm
Board Thickness 0.125mm--6.00mm 0.1mm--8.00mm
Thickness Tolerance ( t≥0.8mm) ± 8% ±5%
Thickness Tolerance( t<0.8mm) ±10% ±8%
Minimum Line / Space 0.10mm 0.075mm
Trace width Tolerance 15%-20% 10%
Minimum Drilling Hole (Mechanical) 0.2mm 0.15mm
Minimum laser hole 0.1mm 0.075mm
Mini hole ring (single 0.075MM 0.05MM
Mini Solder Mask Bridge 0.05mm 0.025mm
Surface Finishing HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver.
Plated gold , OSP, Carbon ink,

Our Advantages

1. Quick lead time of prototype & Punctual delivery.

2. Think highly of quality -- High pass rate
Pass rate of prototype: 100%
Pass rate of mass production: over 99.95%

3. Provide free consultation service of PCB and PCBA design.

4. We accept small order as well as bulk order.

5. Certification: Rosh, Reach, ISO 9001, 14001, UL, etc.

6. Provide OEM and ODM service.

Here is why our customers choose us for their PCB Fabrication & Assembly needs:
Long known as industry pioneers,we continue that reputation by offering full in-house PCB manufacturing and quickturn/small quantity assembly capabilities.We invite you to discover our PCB quality,reliability,and exceptional customer service.We only service for foreign customers.
