Specifications
Brand Name :
Xinguanglithium battery
Model Number :
72V 40Ah
Certification :
CE
Place of Origin :
China
MOQ :
5 pcs
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000+
Delivery Time :
sample delivery within 5 days , bulk goods 20-35 days
Packaging Details :
common export ctn box package
Product name :
72V 40Ah High Output Motorcycle Battery Pack lithium battery packs
Cycle life :
2000 Cycles
Material :
lithium
Oem/odm :
Acceptable
Warranty time :
3 years
Description

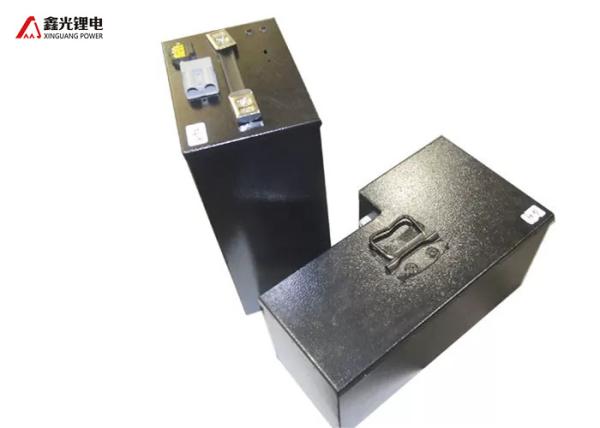

72V 40Ah High Output Motorcycle Battery Pack lithium battery packs

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Description

VICT produce high quality Li NCM batteries for electric motorcycles, electric vehicle, solar energy storage, lawn mower, golf cart and various application field. The battery voltage is from 12v to 120v, the capacity is from 20ah to 2000ah.

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Item Specification Notes
Array Mode 4P20S
Nominal Capacity 40Ah at 23±2℃ Standard charge and discharge
Nominal Voltage 72V
Energy 2880Wh at 23±2℃
AC Impedance ≤80mΩ At 1kHz with 100% SOC
Charging Voltage 84±0.15V
Discharge End Voltage 60±0.2V
Standard Charging Method CC and CV is 10A Tempeature 23±2℃,charge end with 4.5h orcurrent drops to 0.02C
Max.Charge Current 20A Temperature 23±2℃
Standard Discharging Method 40A Constant Current Discharge with 1C
Max.Discharge Current 60A Discharge Time: Less than 120 s (at 23±2℃)
Operating Temperature Charging 0℃~45℃
Discharging -20℃~60℃


Features

• More than 2000 Cycles @80% DOD ( depth of discharge)

• Battery modules available for parallel and series for higher voltage and capacity

• BMS Passive cell balance funciton

• IP66, IP67, water proof, dust proof, Temperature monitoring

• Customization for Size and Discharge and charge rate

• Free of Maintenance, contains no poisonous material

• No leakage, no hazardous chemistry

• Quick delivery

• Lighter in weight, smaller in size to save space.

• Powerfull to increase robust operation for your marine boat or RV

• Fast charging and high power discharge rate available

• No need to add water nor worry about maintenance.

• We offer 3 years regular warranty and it can be extended up to 10 years.

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Advantages of battery:

We are a reliable and professional manufacturer of rechargeable batteries. We have a research and development team.

1. Develop customized BMS for your project in house

2. Use high-quality battery cells , with strictly QC control

3. With silicone insulation , battery pack with 3 years warranty

4. All the battery pack with insurance code , do not worry about the after sale service

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Built-in BMS

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Item Specification Notes
Model LI20SN5-4-120A
Charge Method CC Plus CV
Max. Charge Current 10A
Continuous Discharge Current 35A
Peak Discharge Current 120A±10A Time9ms
Overcharge Protection Threshold 4.2±0.03V
Overcharge Protection Release Conditions 4.1±0.05V
Over Discharge Protection Voltage Threshold 2.8±0.08V Delay time 1s
Over Discharge Protection Release Conditions Charging or release load
Over Discharge Current Protection 120±10A
Over Discharge Current Protection Release Conditions Charging or release load
Over Temperature Protection Threshold 75℃±8℃ During Discharge Process
Over Temperature Protection Release Condition 58℃±8℃ During Discharge Process
Balance Start Voltage /
Balance Current /
BMS B-, P- On-Resistance ≤20mΩ
Short Circuit Current Protection Function Yes Exterior short circuit
PCM Consumption Current 50uA (Max.) Normal mode

Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions,

High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Voltage Capacity/AH Weight With BMS

Bluetooth/RS485

Auto-heating/Canbus

Warranty Life Cycles
12V 10 Optional Yes Optional 3 years >6000 times
12V 15 Optional Yes Optional 3 years >6000 times
12V 20 Optional Yes Optional 3 years >6000 times
12V 25 Optional Yes Optional 3 years >6000 times
12V 30 Optional Yes Optional 3 years >6000 times
12V 40 Optional Yes Optional 3 years >6000 times
12V 50 Optional Yes Optional 3 years >6000 times
12V 60 Optional Yes Optional 3 years >6000 times
12V 80 Optional Yes Optional 3 years >6000 times
12V 86 Optional Yes Optional 3 years >6000 times
12V 100 Optional Yes Optional 3 years >6000 times
12V 120 Optional Yes Optional 3 years >6000 times
12V 140 Optional Yes Optional 3 years >6000 times
12V 150 Optional Yes Optional 3 years >6000 times
12V 160 Optional Yes Optional 3 years >6000 times
12V 176 Optional Yes Optional 3 years >6000 times
12V 200 Optional Yes Optional 3 years >6000 times
12V 240 Optional Yes Optional 3 years >6000 times
12V 250 Optional Yes Optional 3 years >6000 times
12V 271 29KG Yes Optional 3 years >6000 times
12V 300 Optional Yes Optional 3 years >6000 times
12V 400 Optional Yes Optional 3 years >6000 times
12V 500 Optional Yes Optional 3 years >6000 times
12V 600 Optional Yes Optional 3 years >6000 times
12V 700 Optional Yes Optional 3 years >6000 times
12V 800 Optional Yes Optional 3 years >6000 times
12V 900 Optional Yes Optional 3 years >6000 times
12V 1000 Optional Yes Optional 3 years >6000 times
12V 1500 Optional Yes Optional 3 years >6000 times
12V 2000 Optional Yes Optional 3 years >6000 times
12V 2500 Optional Yes Optional 3 years >6000 times
12V 5000 Optional Yes Optional 3 years >6000 times
Note Capacity/Size /Weight Can be Customized OEM Available, MOQ 1pcs

Products Parts

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Application

This product specification describes the main characteristics of the lithium battery pack, and is not included in this specification for situations beyond the use environment and conditions of the lithium battery.

This product is specially used for electric vehicles,electric scooters,electric boat ,solar energy , home electric tools , Military Equipments and so on

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

About us:

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Certification:

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Packing and shipping

• Fedex/DHL/UPS/TNT for sample . Door to Door

• By Air or by Sea for Bulk goods , for FCL . Airport Port receiving

• Customers specifying freight forwarders or negotiable shipping methods

• Delivery Time: 7-15 days for samples , 25-35 days for bulk goods time

72V 40Ah High Output Vehicles Motorcycle Lithium Battery Packs

Why Choose us?

Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards

for production inspection, to ensure product quality and safety.


Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.


Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.

Quick delivery

Fast delivery is key factor for clients to compete in the market. We attach much importance to quick delivery as much

as we do in our LiFepo4 lithium battery quality. We will keep our clients updated with tracking number all the time and latest tracking info until the order of LiFePO4 lithium Battery arrives at our clients safely.

24 hours customer service, waiting for your inquiry!
