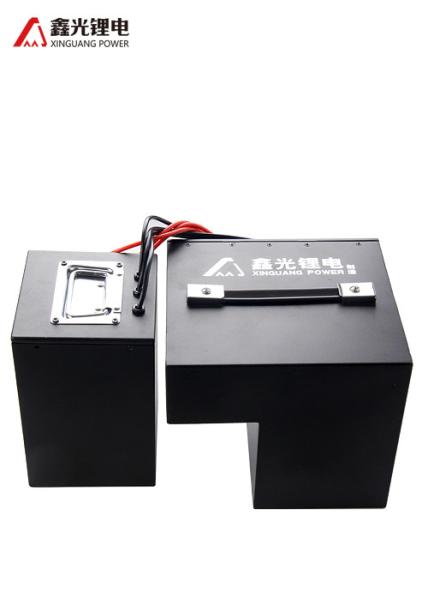

4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery
Specifications
Brand Name :
Xinguanglithium battery
Model Number :
60V 75AH
Certification :
CE
Place of Origin :
China
MOQ :
1 groups
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000+
Delivery Time :
28 days
Packaging Details :
export ctn box package
Products Name :
Electric Bus Battery Pack
Material :
Lithium Ion
Type :
60 Volt 75Ah
OEM/ ODM :
Accept
payment term :
LC/ TT
Delivery time :
28 days after got the payment
Capacity :
60V
Description

4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery

Electric Bus Battery Pack Features


1. Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar
life than lead acid battery.helping to minimize replacement cost and reduce total cost of
ownership.

2. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in'
replacement for lead acid batteries.Higher Power: Delivers twice power of lead acid battery ,
even high discharge rate, while maintaining high energy capacity.

3. Wider Temperature Range: -20C-60C.

Electric Bus Battery Pack Specification




Electrical Characteristics

Nominal Voltage

60 V

Nominal Capacity

75Ah

Energy

4500Wh

Internal Resistance

≤80mΩ

Cycle Life

>2000cycles @1.0C 100%DOD

Months Self Discharge

<3%

Efficiency of Charge

100%@0. 2C

Efficiency of Discharge

96~99%@0.5C



Standard Charge

Charge Voltage

54.0±0. 1V

Charge Mode

0.2C to 54.0V,then 54.0V,charge current to0.02C(CC/CV)

Charge Current

15A

Max. Charge Current

75A

Charge Cut-off Voltage

57.6V±0. 2


Standard Discharge

Continuous Current

15A

Max continuous discharge current

75A

Discharge Cut-off Voltage

37.5V


Environmental

Charge Temperature

0 ºC to 45 ºC (32F to 113F) @60±25% Relative Humidity

Discharge Temperature

-20 ºC to 60 ºC (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

0 ºC to 40 ºC (32F to 104F) @60±25% Relative Humidity

Water Dust Resistance

IP21




Mechanical

Cell & Method

LC-FA027135250-75Ah 15S1P

Plastic Case

Iron

Dimensions (in./mm.)

442*400*176mm(17.4"*15.75"*6.93Ins)

Weight (lbs./kg.)

Approx:45Kg(99.21Ibs)

Gravimetric specific energy

97WH/KG

Protocol (optional)

ModBus/RS485/RS232

SOC (optional)

LED

Electric Bus Battery Pack Applications:

  • Passenger and commercial plug-in hybrid electric vehicles (PHEVs)

  • Passenger and commercial battery electric vehicles (BEVs)

  • Solar power storeing ,e-bike , e scooter, golf cart And Others .

4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery

Battery Pack plugs parts avaliable

Any one you want pls kindly contact with us to choose the right one for you !!!

4500Wh 60 Volt 75Ah Electric Bus Battery Pack 75ah Lithium Battery

Why Choose us?

Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards

for production inspection, to ensure product quality and safety.


Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.


Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.
