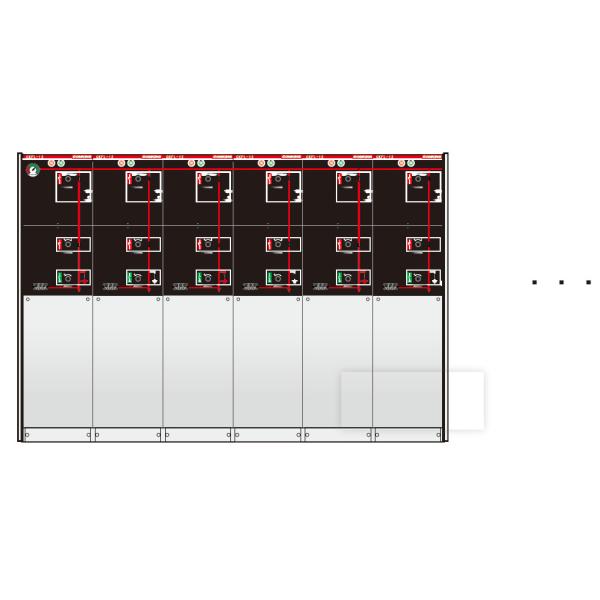

Non Expandable Low Voltage Switchgear High Intelligence Automatic Condition New
Non Expandable Low Voltage Switchgear High Intelligence Automatic Condition New
Specifications
Brand Name :
Comking
Model Number :
CKFL-F
Certification :
Type Test Report
Place of Origin :
China
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Wooden Packing
MOQ :
1set
Price :
To be discussed later
Delivery Time :
10-15 work days
Rated voltage :
Max. up to 24kV
Rated frequency :
50Hz, 60Hz
Rated curent :
630A
Insulation :
SF6 gas insulation
Description

Swith-fuse combination module - Module F

● Function

It can control and protect transformer.

● Standard Feature

(1) bus bar, 630A

(2) three-position load switch

(3) spring operating mechanism for load switch

(4) manometer for SF6 gas pressure

(5) capacitive voltage indicator

(6) key interlocking

(7) padlocks

(8) earthing busbar

(9) operating handle

(10) trip indicator for fuse

(11) earthing switch connects directly below the fuse

● Optional Feature

(1) electric operating mechanism of load switch

(2) fault indicators for short circuit or earthing

(3) surge arrester or double cable terminal

(4) busbar extension for future

(5) external busbar (6) current transformer & meter

(7) auxiliary contact for load switch

(8) auxiliary contact for earthing switch

(9) tripping coil

(10) locking magnet on the earthing mechanism (it only

(11) control room allows activation of earthing mechanism when incoming

(12) fuse for transformer protector cable doesn’t in a charged state)
