Simple Operation Electric Powered Forklift 50X122X1070mm With Superior Work Safety
Simple Operation Electric Powered Forklift 50X122X1070mm With Superior Work Safety
Simple Operation Electric Powered Forklift 50X122X1070mm With Superior Work Safety
Simple Operation Electric Powered Forklift 50X122X1070mm With Superior Work Safety
Simple Operation Electric Powered Forklift 50X122X1070mm With Superior Work Safety
Simple Operation Electric Powered Forklift 50X122X1070mm With Superior Work Safety
Specifications
Brand Name :
BYD
Model Number :
BYD-CPD30
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 per month
Delivery Time :
5~8 work days
Packaging Details :
container
Power type :
Electric Counterbalance
Battery :
80V/400Ah
Capacity :
3000Kg
Name :
Electric forklift
Tire :
pneumatic tyres
Motor Type :
AC motor
Description

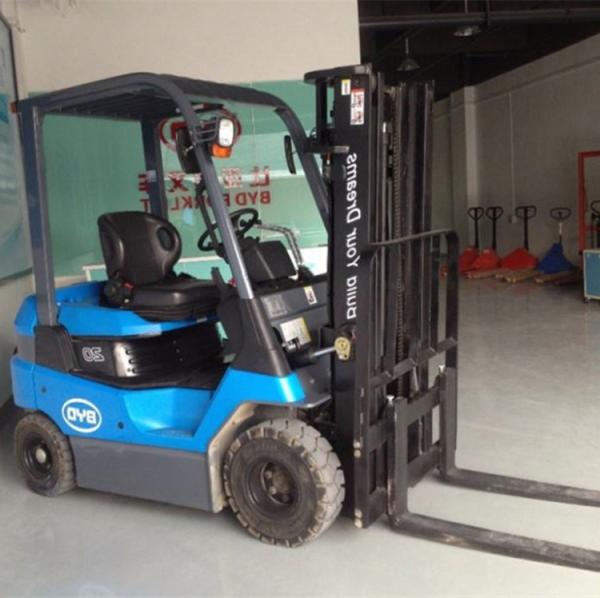

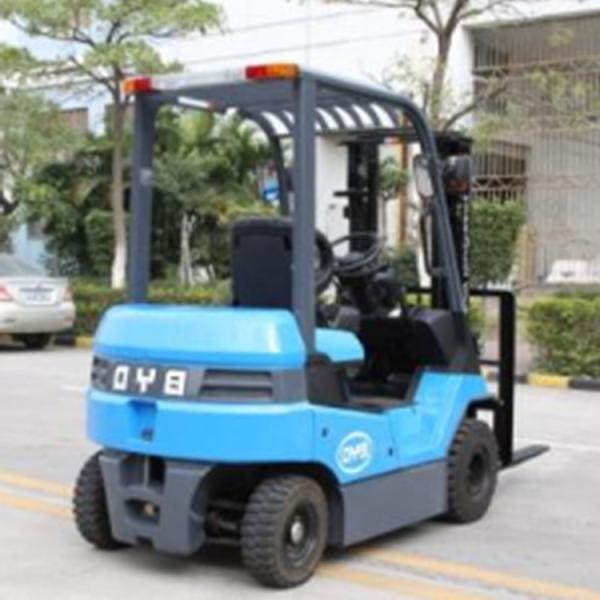

2 Ton 3 Ton BYD electric counterbalance forklift truck

Electric Forklift specification:

Feacture Model CPD30
1.1 Manufacturer BYD
1.2 Driver Electric
1.3 Operator type Drive on the Seat
1.4 Load capacity kg 3000
1.5 Load center mm 500
1.6 Load distance mm 475
1.7 Wheelbase kg 1795
Weight 2.1 Service weight including battery kg 5380
2.2 Axle load, with load ,driver kg 7937
2.3 Axle load without load, driver kg 2353
3.1 Drive/castor/fork wheel solid tires
3.2 Wheel size, front mm 28X9-15
3.3 Wheel size,rear mm 23X9-10
3.4 Additionalwheels mm -
3.5 Wheels, number front/rear 2X/2
3.6 Track width,front mm 1028
3.7 Track width, rear mm 980
4.1 Overall length mm 3600
4.2 Length of face of forks mm 2530
4.3 Fork Height mm 1320
4.4 Max Height mm 3000
4.5 Min Height mm 4220
4.6 Overhead guard height mm 2240
4.7 Height of tiller indrive position mm -
4.8 Stand height mm -
4.9 Fork dimensions mm 50X122X1070
4.10 Width over forks mm 5/9
4.11 Tilt range before/after mm 120
4.12 Free Lift mm --
4.13 Fork spread mm --
4.15 Min turning radius mm 2060
4.16 Ground Clearance mm --
5.1 Travel speed, load/ unload km/h 18/20
5.2 Lift speed, load/unload mm/s 380/420
5.3 Lift speed, load/ unload mm/s
5.4 Max.gradeability, load/unload % 15/15
5.5 Service brake kw hydraulic
6.1 Drive motor rating S2 60 min kw 2X10
6.2 Lift motor rating at 15% kw 22
6.3 Battery volt/capacity V/Ah 80/400
6.4 Battery weight kg 518


FAQ

1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.

2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.

4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.


5. Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
