Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler
Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler
Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler
Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler
Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler
Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler
Specifications
Brand Name :
CASCADE
Model Number :
SLR-A203
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 per month
Delivery Time :
5~8 work days
Packaging Details :
container
Product name :
single double pallet handler
Inner Fork Range :
230mm
Capacity :
2500kg
Fork Length :
1150mm
Mounting Class :
II
Fork Width :
80mm
Description

CASCADE Class 2 Forklift attachment Single/Double Pallet Handler

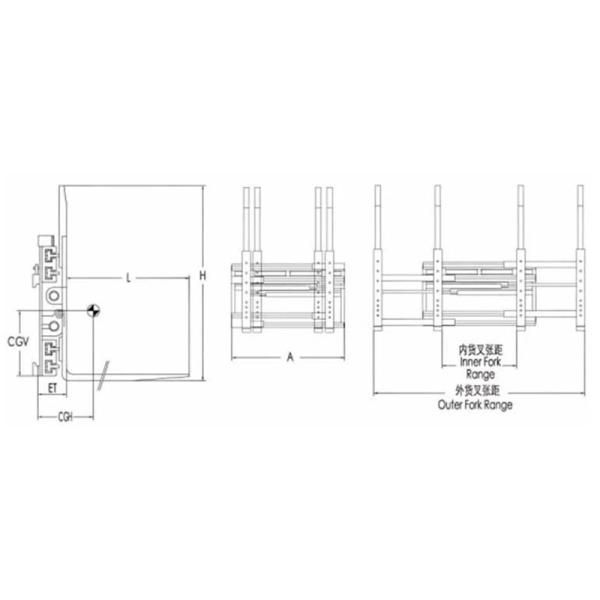

Pallet Handler Specification:

Capacity@ Load Center

(kg@mm)

 Catalog Mounting Class Outer Fork Range (mm) Inner Fork Range (mm) Frame Width(A) (mm) Forks (mm) Backrest Size (mm) Effective Thickness (ET)(mm) Weight(kg)
2500@600 SLS-A003 2 560-1960 230 1200 1150*80*40 1200 222 522
2500@600 SLS-B003 3 560-1960 230 1200 1150*80*40 1200 225 525

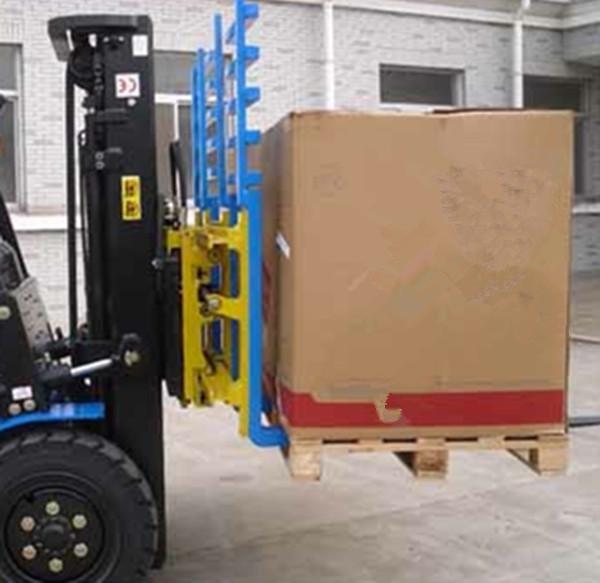

Pallet handlers can handler of goods quickly and flexibly. When using the hydraulic drive two forks fast actions. It can carry two pallets, when the fork is separated, it can work flexibly when the fork is closed. Especially it is suitable for the handling and stacking in the containers.

Class 2 Forklift Truck Attachments Flexible Single / Double Pallet Handler

Note:

1) Please get the actual comprehensive carrying capacity of forklift/attachment from the forklift factory

2) Requires a forklift to increase the additional 2 sets of oil-way.

3) The opening range is the distance between the inside of the fork.

4) The forks can be based on user needs to install all kinds of special clamp arm.

FAQ

1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.

2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.

4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.


5. Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
