Specifications
Brand Name :
YXC
Model Number :
SX-DFS
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000per month
Delivery Time :
5~8 working days
Packaging Details :
carton
Power :
Opotions
Voltage :
220V/380V
Type :
Axial flow fan
Material :
Aluminum alloy
Function :
Air cooling
Electric Current Type :
AC
Dia :
2~7.3m options
Description

Big Wind Large Diameter 7.3m Industrial Warehouse Ceiling Fan

Ceiling Fan Specification:

Type

Dia

mm

Airflow

m3/h

Speed

r/min

Cover

㎡

Motor Power

KW
SX-DFS20 2000 15686 211 250 0.25
SX-DFS30 3000 35118 145 400 0.55
SX-DFS37 3700 48000 115 550 0.55
SX-DFS45 4500 60530 104 870 0.75
SX-DFS55 5500 70670 64 1050 1.10
SX-DFS60 6000 78000 60 1250 1.50
SX-DFS73 7300 86000 56 1400 1.50

SX-DFS is HIGH VALUME,LOW SPEED fan, Super large variable frequency control fan. The DFS ceiling fan was born in 1990.

It is designed to save energy and reduce consumption of tall builings and improve the working enviroment.

SX-DFS ceiling fans, but “how big” and “how many” are important questions. The fan size and the number of fans needed in a particular space depend on many things including the building’s size and use. Because choosing the correct fan(s) for an application is complex, it is best to request an airflow simulation.

Aluminum Alloy Warehouse Ceiling Fans , Commercial Warehouse Fans For Air Cooling

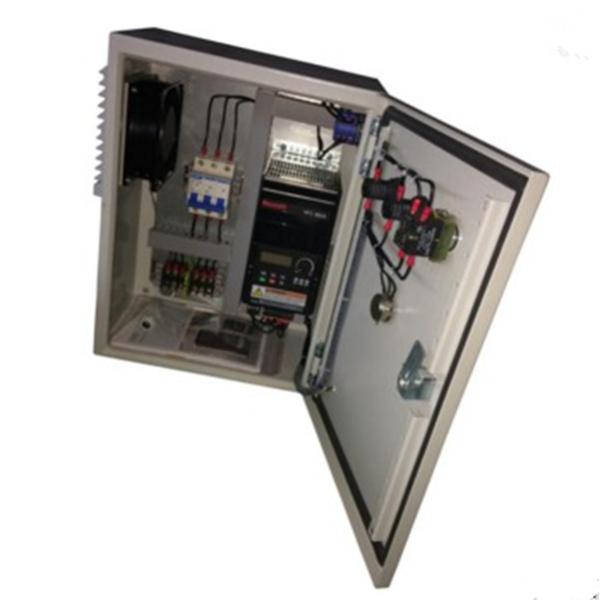

Control box

SX-DFS fan using Rexroth inverterwhich is the most famous inverter in worldwide.

The overload protective device in controller box can automatically disconnect

the power supply once accident occurs. So safety is assured. You can regulate

the wind speed at will by rotary switch. What's more, the inverter can control

the fan to rotate in forward and reversing direction.
NORD MOTOR

1.Low backlash assembly process and gear grinding technique,lower noise

2.Strength the bearing frame structure,increase oil seal and strength the

motor structure with trapezoidal shaft structure,higher safety

3.Passed CCC,CE,UL certificates
Aluminum alloy fan blade

The blade is the core technique of the fan. We use simulation software ANSYS

to make the blades with most reasonable transversal surface and inner limiting

plate. DFS fans have 6/8/10 PCS of blades and winglets to ensure maximum

airflow and efficiency. Unique designed winglets at the airfoil tips greatly

eliminate wind noise. The blades is made of aluminum alloy with plastic

spraying finish, so it can resist corrosion and dust very well.

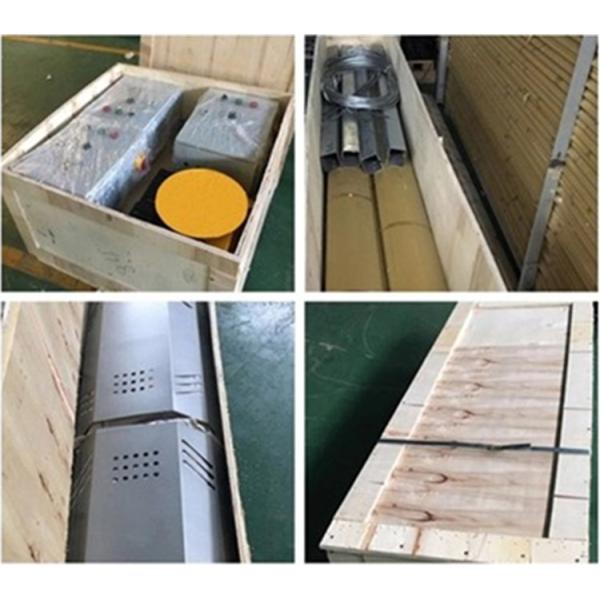

PACKAGE:Standard wooden cases and cartons

wooden cases 0.9M*0.9M*0.9(MOther accessories)
cartons 3.52M*0.2M*0.2M(FAN BLADE)

Aluminum Alloy Warehouse Ceiling Fans , Commercial Warehouse Fans For Air Cooling

FAQ:

Q Where does your fan use in?

A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.

Q: Is it used in electrcity?

A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.

Q: What the price per fan?

A: We will offer you the best price according to the qty and the model.

Q: How long is the delivery time?

A: Normally 7-10 working days.
