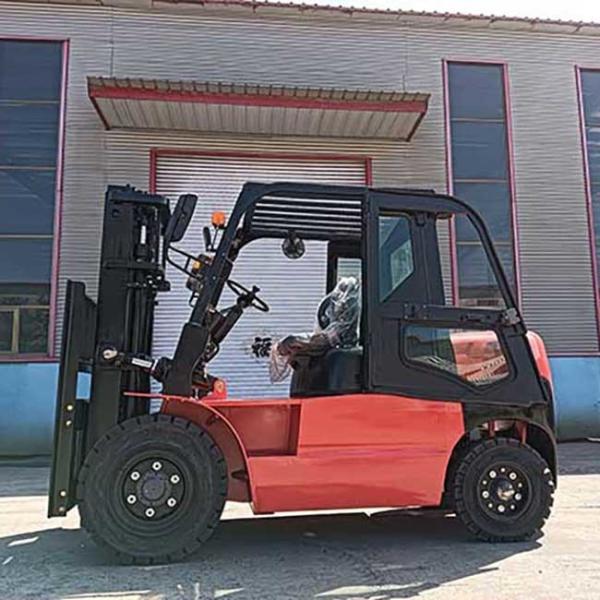

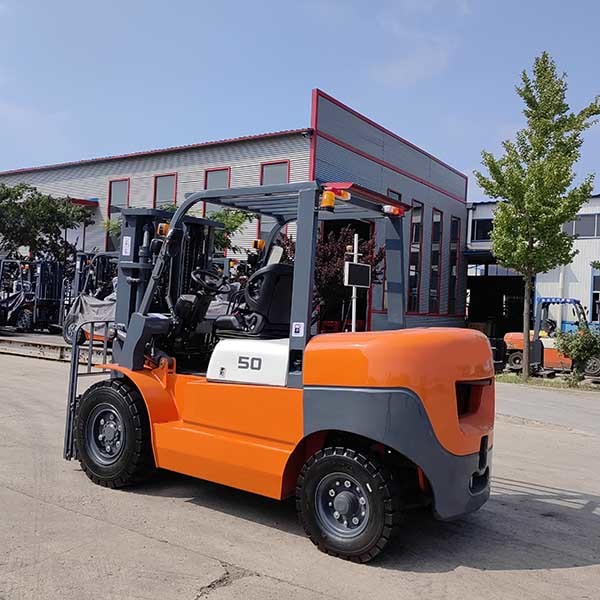

5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
5000KG diesel forklift truck container mast sideshift ISUZU engine
Specifications
Brand Name :
YEAWEY
Model Number :
CPCD50
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
5.0Ton diesel lift truck
Load capacity :
5000kg
Lift height :
Duplex 3m container mast
Fork Size :
1670X125X40MM
Service weight :
5650 kg
Engine :
ISUZU 4JG2 engine
Cabin :
Open cabin or half closed cabin
Description

5000KG diesel forklift truck container mast sideshift ISUZU engine

Main information:

Product name: 5Ton diesel I.C. forklift

Engine: ISUZU 4JG2 Japanese engine

Transmission: Automatic or mechanical

Mast type: Triplex mast 4.5m lifting height

Tires: Pneumatic

Fork: 1520mm

Attachments: Closed cabin with heater or air conditioner

The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Safety
A wide range of technologies are applied to ensure absolute safety for both the operator and those in the surrounding.

Specification CPCD50
1 Fuel model Diesel
2 Load capacity kg 5000
3 Load center mm 500
4 Lift height mm 4.5
5 Full free lift height mm 150
6 Fork dimension mm 1370×140×40
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2840
9 Groud clearance mm 125
10 Overhead guard height mm 2140
11 Front overhang mm 490
12 Max travel speed km/h 20
13 Max lift speed mm/s 555
14 Max.traction power KN 15
15 Max. gradeability % 20
16 Total length with fork mm 4270
17 Total length without fork mm 3050
18 Total width mm 1450
19 Mast extended height mm 5720
20 Mast lowered height mm 2060
21 Tyres Front 300-15
22 Type Rear 7.00-12
23 Wheelbase mm 1600
24 Tread mm 970/970
25 Service weight Kg 560
26 Battery V/Ah 12/80
27 Engine model ISUZU 4JG2 Ja[anese diesel engine
28 Engine power kw/r.p.m 42.0 kw
29 Transmission Mechanical
30 Work press Mpa 18.5

5000KG diesel forklift truck container mast sideshift ISUZU engine5000KG diesel forklift truck container mast sideshift ISUZU engine

5000KG diesel forklift truck container mast sideshift ISUZU engine

5000KG diesel forklift truck container mast sideshift ISUZU engine

5000KG diesel forklift truck container mast sideshift ISUZU engine

5000KG diesel forklift truck container mast sideshift ISUZU engine

5000KG diesel forklift truck container mast sideshift ISUZU engine

5000KG diesel forklift truck container mast sideshift ISUZU engine
