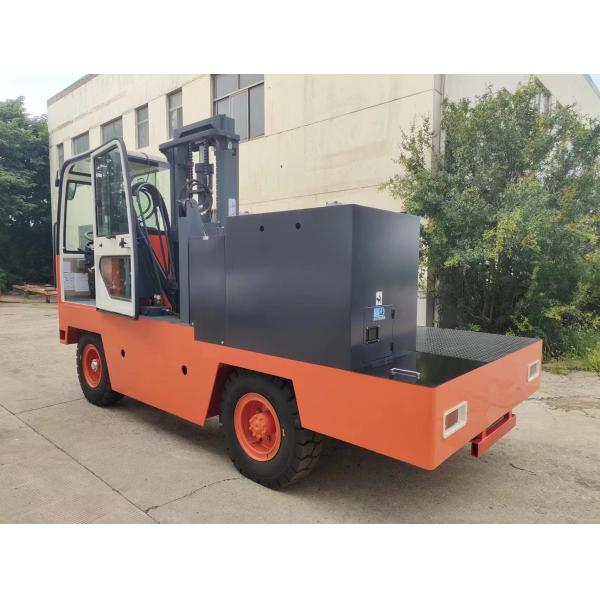

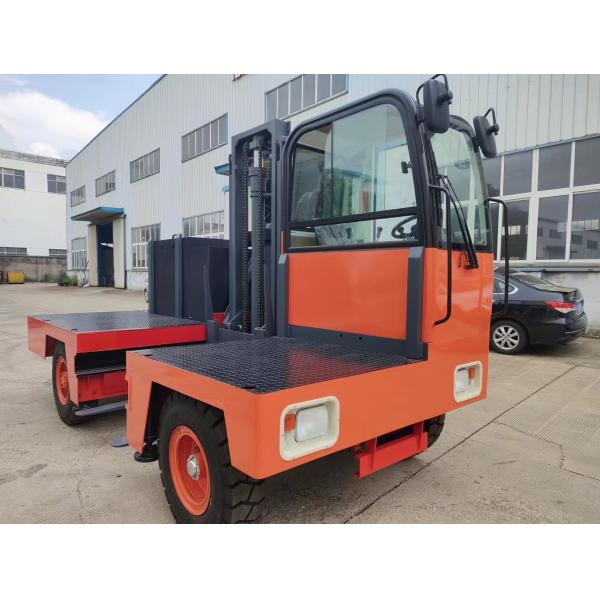

3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
3.0Ton Lead Acid Battery Sideloader Forklift
Specifications
Brand Name :
YEAWEY
Model Number :
CCD-3C
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
4000-5000 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
15-20 working days
Packaging Details :
Plastic bag
Product name :
3.0Ton Lead Acid Battery Sideloader Forklift
Load capacity :
3000 kgs
Battery capacity :
80V/300Ah
Lift height :
2 stage 3.5m mast
Fork Size :
1220×122×45mm
Service weight :
5300 kg
Description

3.0Ton Lithium Battery Sideloader Forklift
Main information:
Load capacity: 3000kg*600mm
Lead acid battery 80V/540Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3.5m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.

Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

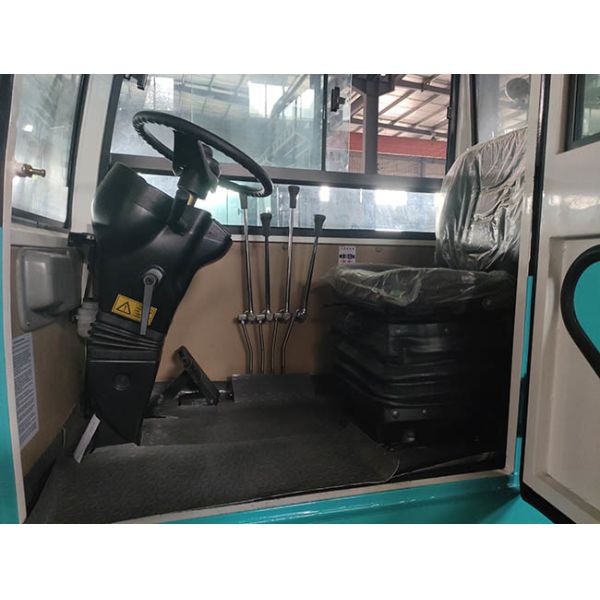

Comfortable experience

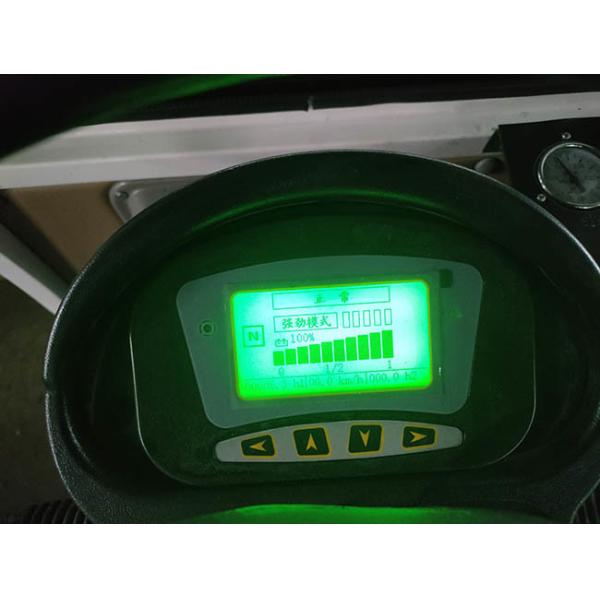

The forklift was ergonomically designed and it enables a wide view and a large operation space. The dashboard are designed to have clear and
intuitive graphic interfaces.

ModelCCD-3C
Carrying capacity (load centre 0.6m)3000kg
Max.lift weight3.5m
Fork free lift height0.3m
Max.lift speed0.25m/s
Max.traveling speed13/15km/h
Fork tilt anger (front/rear)5°/3°
Min.turning radius4.3m
Gradeability (laden)13%
Min.ground clearance (laden)0.17m
Length4.45m
Width2.03m
Overall Fork in the lowest position2.7m
dimensionHeightFork in the highest position4.66m
Wheel base2.46m
Truck width1.6m
Platform height (laden)0.92m
Platform width1.2m
Fork length1.2m
Max.fork spacing0.94m
Tyres size8.25-15-14PR
Weight (unladen)5300kg
Volts AH battery80V/540Ah
Traction motor16.6kw
Pump motor13.5kw
Control systemlmpulse
Intelligent charging machine80V70A
