Specifications
Brand Name :
YEAWEY
Model Number :
CPCD50
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
9000-11500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
5 Ton diesel lift truck economic type
Load capacity :
5 Ton
Lift height :
4000m mast duplex mast
Fork Size :
1670X150X50MM
Service weight :
5950
Engine :
ISUZU 4JG2 diesel engine
Power :
46 kw
Description

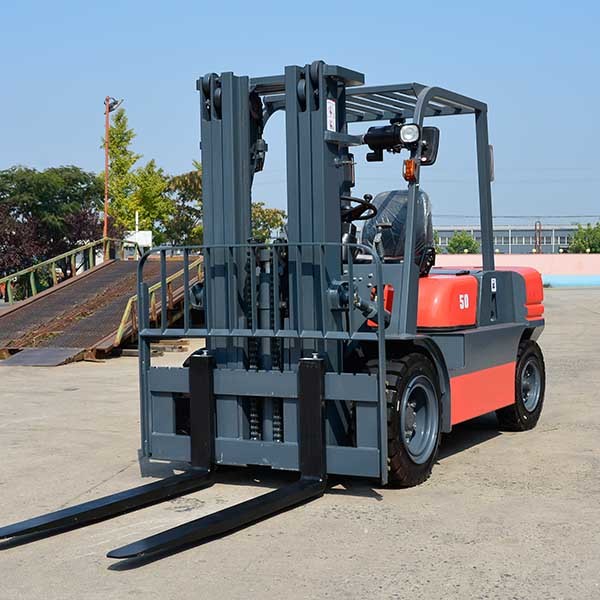

FD50T 5 ton diesel operated forklift Japanese ISUZU 4JG2 engine duplex 4m mast

Main information:
Product name: 5 Ton diesel powered fork lift truck

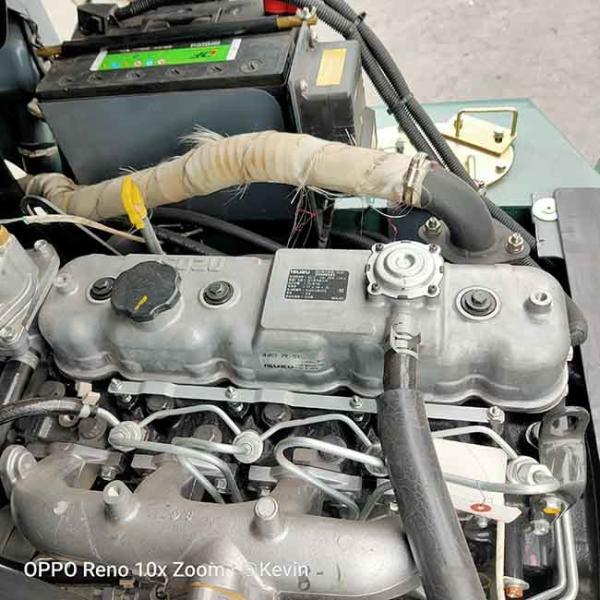

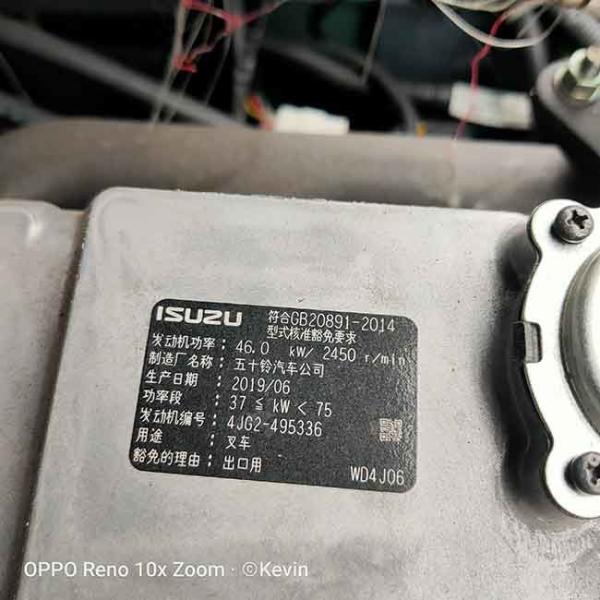

Engine: ISUZU 4JG2 diesel engine

Euro III standard
Transmission: Hydraulic
Mast type: Duplex mast 4m height
Tires: pneumatic
Fork: 1670mm
Attachments: Side shift


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Large Opening Angle

Enlarged internal space is convenient for engine and transmission box maintenance.

Increased hood opening angle makes maintenance convenient.

Suspension Seat (Optional)

Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.

Adjustable Steering Wheel

Provide convenience and can customize to the operator's desired position.

Specification CPCD50
1 Fuel model Diesel
2 Load capacity kg 5000
3 Load center mm 500
4 Lift height mm 4000
5 Full free lift height mm 1000
6 Fork dimension mm 1670×150×50
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 3150
9 Groud clearance mm 140
10 Overhead guard height mm 2180
11 Front overhang mm 550
12 Max travel speed km/h 21
13 Max lift speed mm/s 360
14 Max.traction power KN 18
15 Max. gradeability % 20
16 Total length with fork mm 4520
17 Total length without fork mm 3300
18 Total width mm 1400
19 Mast extended height mm 2400
20 Mast lowered height mm 2210
21 Tyres Front 250-15-12PR
22 Type Rear 700-12-12PR
23 Wheelbase mm 2250
24 Tread mm 1130/1100
25 Service weight Kg 5950
26 Battery V/Ah 12/80
27 Engine model ISUZU 4JG2 diesel engine
28 Engine power kw/r.p.m 46
29 Transmission Automatic
30 Work press Mpa 20

FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2

FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2

FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2


FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2

FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2

FD50T 5 Ton Forklift Diesel Counterbalance Fork Truck Japanese ISUZU 4JG2
