3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
Specifications
Brand Name :
YEAWEY
Model Number :
CPCD30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
7000-9500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
3 Ton diesel lift truck T series
Engine :
UMMINS QSF2.8t
Power :
43 kw
Lift height :
4.5m full free lift mast
Fork Size :
1220X125X45MM
Service weight :
4450KG
Description

3000kg FD30 3 ton diesel forklift truck Cummins EPA diesel engine hydraulic transmission

Main information:
Product name: 3.0Ton diesel powered forklift
Engine: CUMMINS QSF2.8t
Transmission: Automatic
Mast type: 2 stage mast 4.5m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Side shift

The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

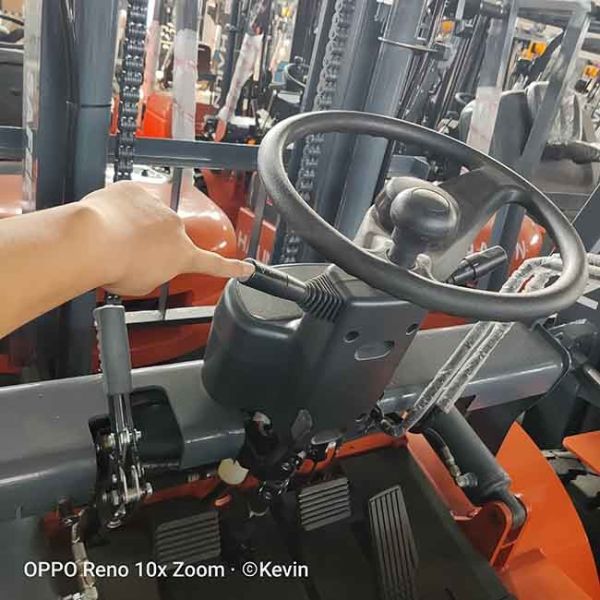

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Wide-angle Rear-View Mirror

Provides more comprehensive rear view for enhanced safety.

Vibration reduced

Cushion connection and wholly suspension driver's cab absorb whole truck's vibration effectively.

Noise reduced

Noise around ear is reduced through down the tilting cylinder under the floorboard and using fully closed patch type driver's cab.Lower damping device inside the lifting system reduces mast shock and vibration and avoiding crash noise caused by goods falling to the ground.

Specification CPCD30
1 Fuel model Diesel
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 4500
5 Full free lift height mm 100
6 Fork dimension mm 1670×125×45
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front 28x9-15-12PR
22 Type Rear 6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4550
26 Battery V/Ah 12/80
27 Engine model UMMINS QSF2.8t
28 Engine power kw/r.p.m 43
29 Transmission Automatic
30 Work press Mpa 18.5

3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance

3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance

3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance

3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance

3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance

3000kg FD30 3 Ton Diesel Forklift Cummins EPA Forklift Truck Counterbalance
