ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
Specifications
Brand Name :
YEAWEY
Model Number :
CPCD30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
7000-9500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
3T diesel forklift H series
Engine :
ISUZU C240 diesel engine
Lift height :
3m
Mast type :
2 stage standard
Fork Size :
1520X125X45MM
Service weight :
4500KG
Description

Container mast 3000kgs 3 Ton diesel forklift truck ISUZU C240 diesel engine

Main information:
Product name: 3.0Ton diesel forklift truck H series

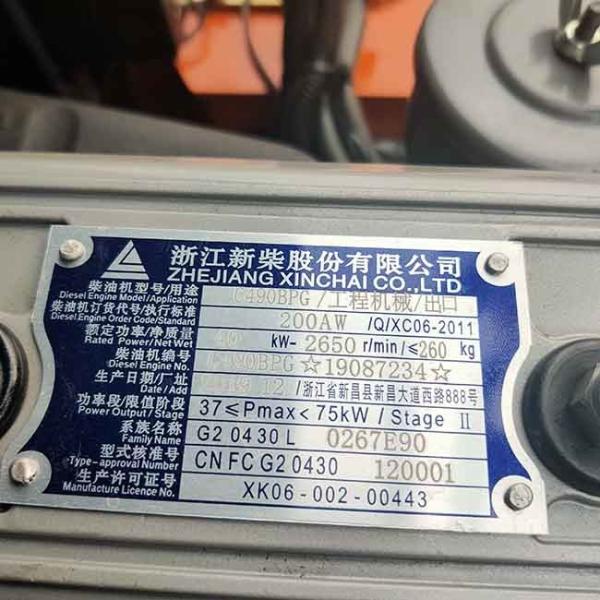

Engine: Xinchai C490BPG engine
Transmission: Automatic
Mast type: Triplex mast 4800mm lifting height
Tires: Solid
Fork: 1520mm
Attachments: Side shift


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Durable mast

The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.

Vibration reduced

Cushion connection and wholly suspension driver's cab absorb whole truck's vibration effectively.

Gravity&capacity improved

The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.

Specification CPCD30
1 Fuel model Diesel
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 4800
5 Full free lift height mm 1500
6 Fork dimension mm 1520×125×45
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front 28x9-15-12PR
22 Type Rear 6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4500
26 Battery V/Ah 12/80
27 Engine model Xinchai C490BPG engine
28 Engine power kw/r.p.m 40
29 Transmission Automatic
30 Work press Mpa 18.5

ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift

ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine ForkliftISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift

ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift

ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift


ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift

ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift

ISUZU C240 3 Ton Diesel Forklift Container Mast 3000kgs Diesel Engine Forklift
