CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
Specifications
Brand Name :
YEAWEY
Model Number :
CPCD50
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
7000-9500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
4.5 Ton diesel powered lift truck
Engine :
XINCHAI A498BPG engine
Power :
45kw
Lift height :
4500mm FFL mast
Fork Size :
1520X150X45MM
Service weight :
5150KG
Description

CPCD45 4500kg 4.5 Ton lift truck hydraulic transmission diesel powered

Main information:

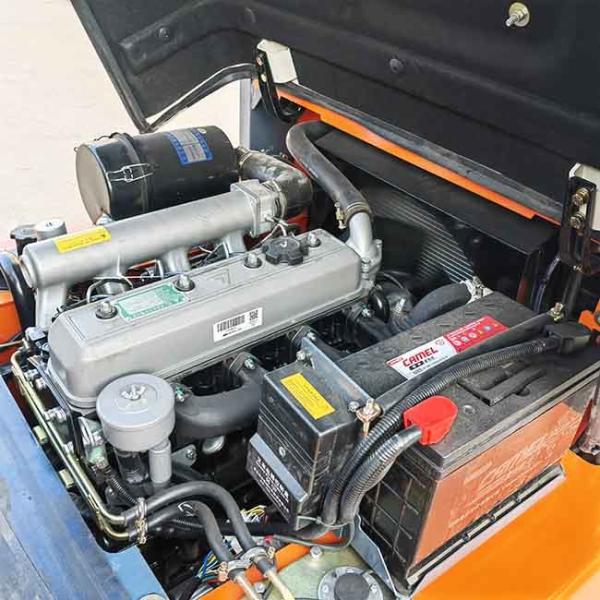

XINCHAI A498BPG engine
Transmission: Automatic
Mast type: 3 stage mast 4.5m full free lift
Tires: Solid or pneumatic
Fork: 1520mm

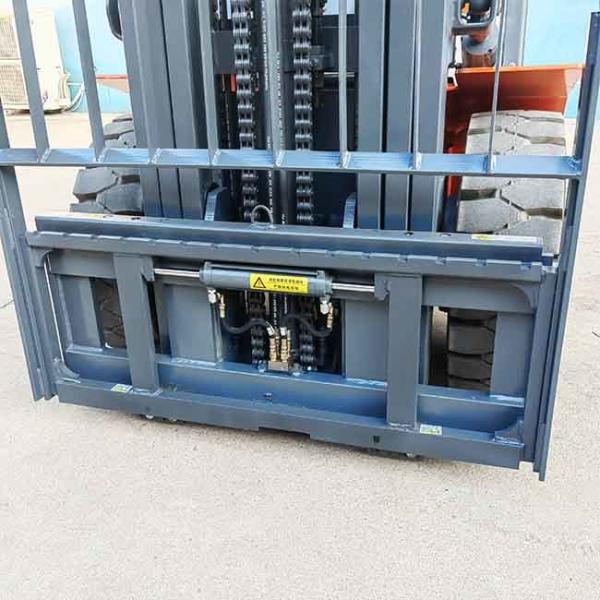

Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

SpecificationCPCK50
1Fuel model Diesel
2Load capacitykg4500
3Load centermm500
4Lift heightmm4500
5Full free lift heightmm1500
6Fork dimensionmm1520×150×50
7Mast tilting angleDeg.6/6
8Min.turning radiusmm2680
9Groud clearancemm135
10Overhead guard heightmm2210
11Front overhangmm495
12Max travel speedkm/h22
13Max lift speedmm/s330
14Max.traction powerKN18.5
15Max. gradeability%20
16Total length with forkmm4195
17Total length without forkmm2975
18Total widthmm1380
19Mast extended heightmm4250
20Mast lowered heightmm2185
21Tyres Front 300-15-18PR
22Type Rear 700-12-10PR
23Wheelbasemm1960
24Treadmm1000/970
25Service weightKg5300
26BatteryV/Ah12/80
27Engine model XINCHAI A498BPG engine
28Engine powerkw/r.p.m45
29Transmission Mechanical or Automatic
30Work pressMpa18.5


CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic TransmissionCPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic TransmissionCPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic TransmissionCPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic TransmissionCPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission

CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission

CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission

CPCD45 Diesel Counterbalance 4500kg 4.5 Ton Lift Truck Hydraulic Transmission
