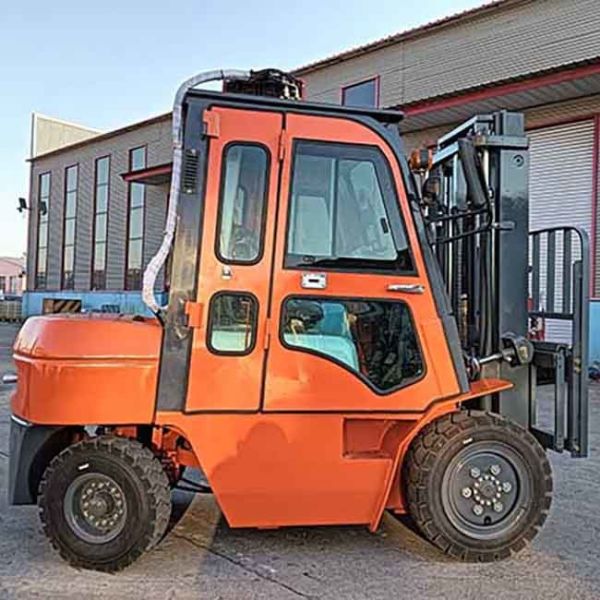

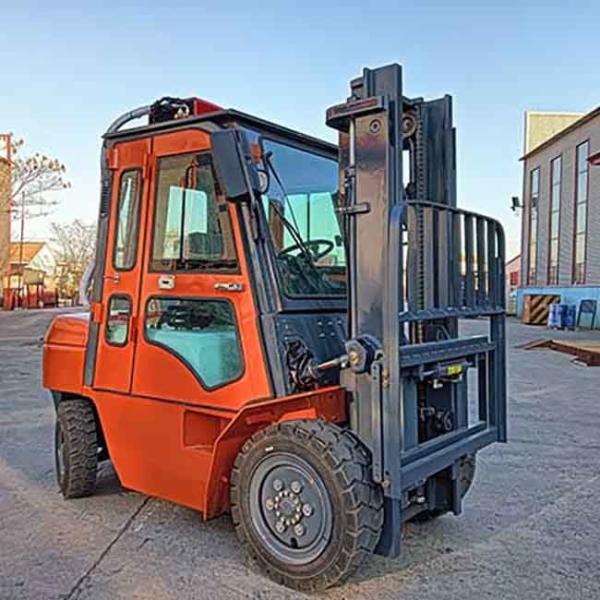

New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
Specifications
Brand Name :
YEAWEY
Model Number :
CPCD35
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
3.5T diesel forklift with cabin
Engine :
Xinchai A495 engine 42.0 kw
Power :
42.0 kw
Lift height :
4.0m wide view mast
Fork Size :
1070X125X50MM
Service weight :
4850KG
Description

3500 kgs 3.5 Ton new diesel forklift truck with cabin

Main information:

Product name: 3.5Ton diesel counter balance forklift

Engine: XINCHAI A495BPG, 42 KW

Transmission: Mechanical

Mast type: 2 stage mast 4000mm lifting height

Tires: pneumatic

Fork: 1220mm

Attachments: with cabin

The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.

Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.

Workspace increased

Space around foot is effectively increased through up steering unit and using suspension type inching.

The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.

Adjustable Steering Wheel

Provide convenience and can customize to the operator's desired position.

Gravity&capacity improved

The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.

Specification CPCD35
1 Fuel model Diesel
2 Load capacity kg 3500
3 Load center mm 500
4 Lift height mm 4000
5 Full free lift height mm 100
6 Fork dimension mm 1220×125×50
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2550
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 4065
17 Total length without fork mm 2995
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front 28x9-15-12PR
22 Type Rear 6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4800
26 Battery V/Ah 12/80
27 Engine model Xinchai A495 engine 42 kw
28 Engine power kw/r.p.m 42
29 Transmission Mechanical or Automatic
30 Work press Mpa 18.5

New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin

New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin

New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin

New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin

New Diesel Forklift Truck 3500kgs 3.5 Ton Forklift Diesel With Cabin
