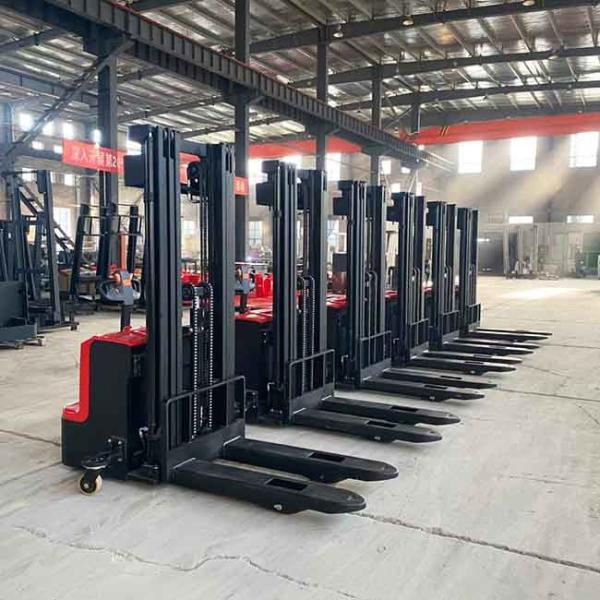

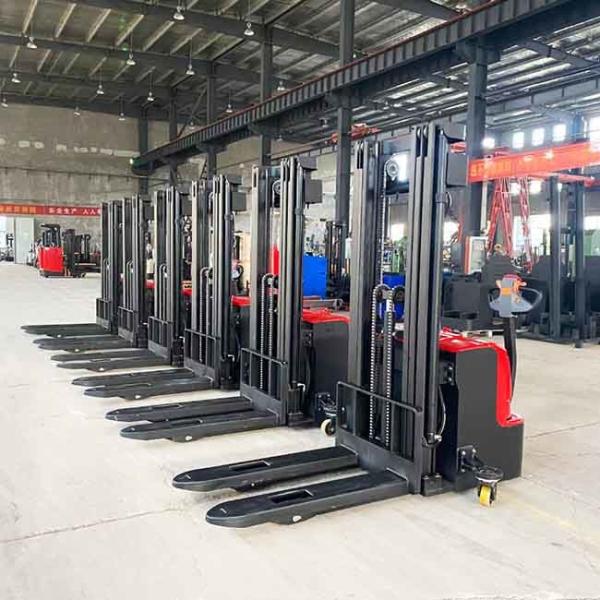

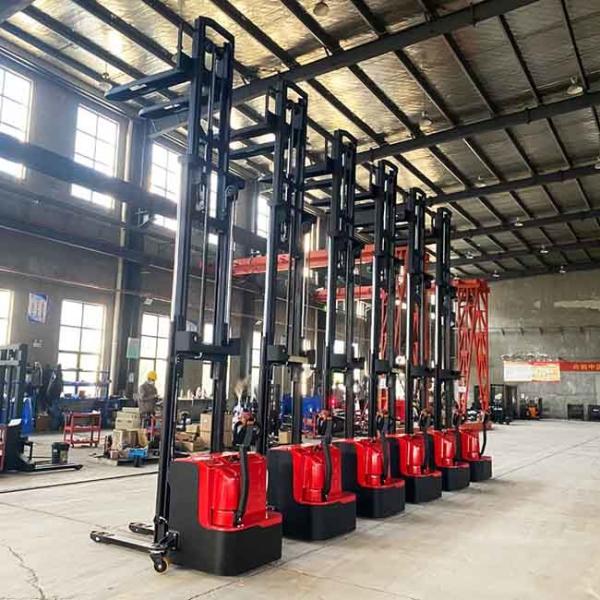

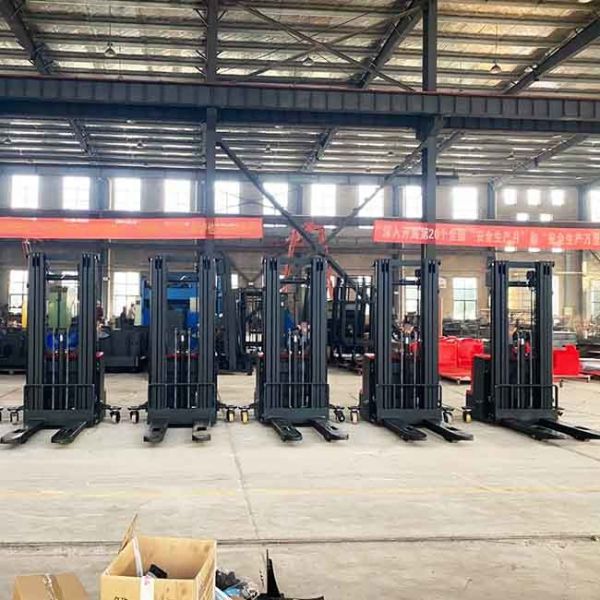

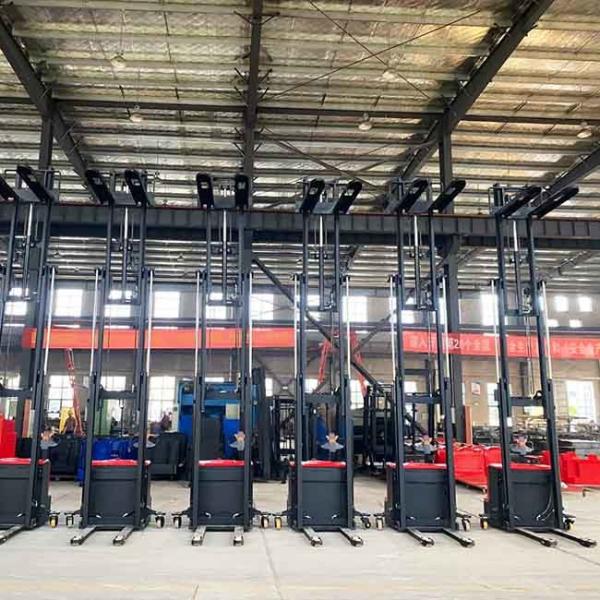

4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
Specifications
Brand Name :
YEAWEY
Model Number :
CDD15-45
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.5T walkie electric forklift
Load capacity :
1500 kgs*600mm
Lift height :
4500mm mast
Fork length :
1200mm
Battery :
2*12V/80Ah
Service weight :
696KG
Description

3 stage 4.5m mast walkie 1.5Ton electric stacker warehouse use lithium battery

Main information:
Chinese AC controller
2*12V/80Ah lead acid battery forklift
Mast type: 3 stage mast
Lift height: 4500mm
Fork: 1200mm

Compact structure

The structure of the truck is more compact than the traditional manual and semi-electric products, and is more efficient. It provides customers with a new solution that can replace manual and semi-electric products. More importantly,it can greatly reduce the physical damage to the operators caused by the long-term drag or lifting and lowering operation comparing to the traditional manual products.

Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.


Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.

Item Model CDDC15-16 CDDC15-30
1 Power type Electric Electric
2 Drive mode Walkie Type Walkie Type
3 Load capacity Q(Kg) 1500 1500
4 Load center C(mm) 500 500
5 Wheel base Y(mm) 1197 1197
6 Self weight with battery kg 596 656
7 Axle load at full load, drive end/bearing end kg 743/1343 764/1392
8 Axle load when unloaded, drive end/bearing end kg 433/163 477/179
9 Tire type Front/Rear Pu solid tire Pu solid tire
10 Front tire size ∅×w(mm) Φ80x70 Φ80x70
11 Rear tire size ∅×w(mm) Φ210x70 Φ210x70
12 Track width, front wheels b10(mm) 515 515
13 Track width, rear wheels b11(mm) 530 530
14 Height-Mast Lowered h1(mm) 2055 1980
15 Lift Height h3(mm) 1600 3000
16 Maximum height when fork is lifting h4(mm) 2075 3478
17 Min. Fork height h13(mm) 85 85
18 Overall length l2(mm) 1858 1865
19 Overall width b1(mm) 800 800
20 Fork size s/e/l(mm) 65/165/1150 65/165/1150
21 Width over fork b5(mm) 350/680 350/680
22 Min ground clearance m2(mm) 25 25
23 Min. stacking aisle 1000*1200 pallet(1200 cross fork placement) Ast(mm) 2238 2238
24 Min. Turning radius Wa(mm) 1380 1380
25 Max.walking speed km/h 4/3.5 4/3.5
26 Max. lifting speed m/s 0.101/0.09 0.101/0.09
27 Max. lowing speed m/s 0.111/0.130 0.111/0.130
28 GradeAbility ％ 6/3 6/3
29 Drive brake Electromagnetic Electromagnetic
30 Drive motor kw 0.75 0.75
31 Lift motor kw 2.2 2.2
32 Battery type Lead acid Lead acid
33 Battery capacity V/Ah 2x12/80 2x12/80
34 Charger V/A 24V/10A 24V/10A
35 DriveControllingType DC DC
36 The noise level in the driver's ear according to EN12053 dB(A) 75 75

4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker

4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker

4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker

4.5m Mast Battery Pallet Stacker 3 Stage Battery Operated Stacker
