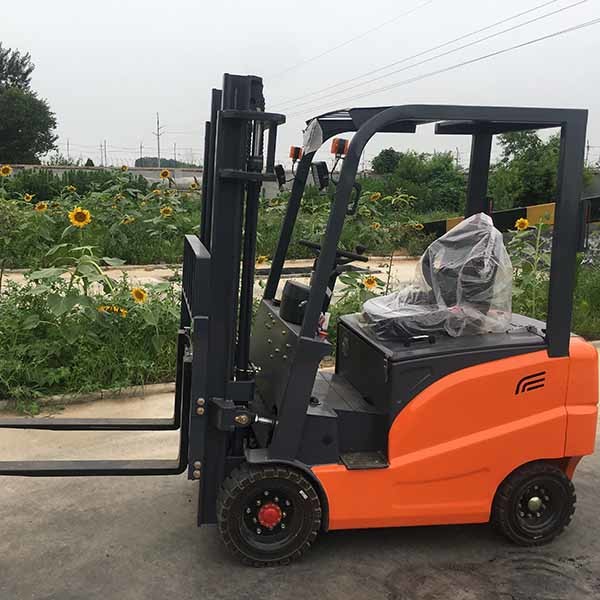

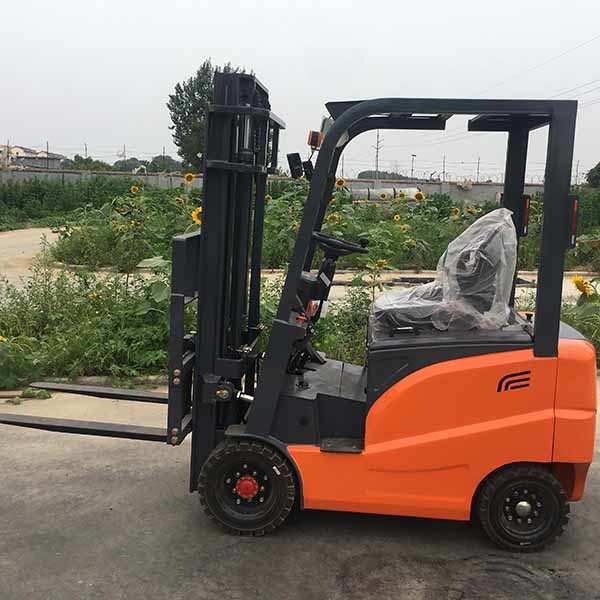

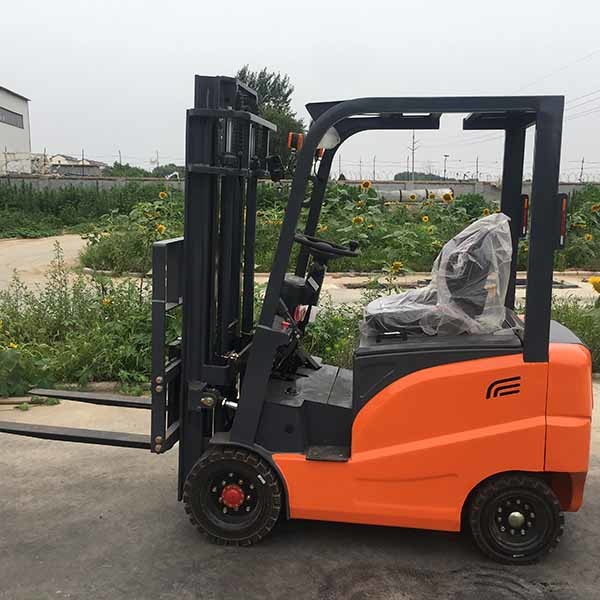

1600 kgs CPD16 1.6 Ton lead acid battery forklift AC motor container mast

Main information:
Load capacity: 1600kg*500mm
Lead acid battery 48V/230Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
2 stage 3m mast
Solid
Fork 1220mm
Attachments: according to customers' requirements.

ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.

Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

Multi-functional instrument
Intelligent multi-functional combination instrument displays forklift speed, electricity detection, service time, seat automatic power switch, operation information, automatic error detection display.

Layer durable chain
The whole series adopts 7-layer chain, strong and durable, high safety performance, to ensure the safety of operation.

Smart forklift body
In order to meet the needs of customers in different working conditions, the forklifts can be used interchangeably. The height of forklift is not exceed 2.1M.
